Siemens
3SE52320HC05
End switch
Manufacturer part number: 3SE52320HC05
Serie:
Type: Position switch plastic EN50047,...
EAN-code: 4011209694170
SKU Omnical: 2016053
Stock: 0.
Estimated lead time: 11 days *
PreOrder
S10
$
34.62
per item
$
22.98
per item
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

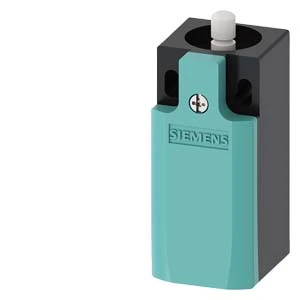

3SE52320HC05 Siemens End switch
Siemens End switch Position switch, plastic enclosure, EN50047, 31 mm device connection
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Type of control element
Plunger
Material housing
Plastic
Number of contacts as change-over contact
0
Number of contacts as normally open contact
1
Number of contacts as normally closed contact
1
Number of safety auxiliary contacts
1
Switching function
Quick-break switch
Width sensor
(mm)
31
Diameter sensor
(mm)
0
Height of sensor
(mm)
33
Length of sensor
(mm)
75.7
Rated operation current Ie at AC-15, 24 V
(A)
6
Rated operation current Ie at AC-15, 125 V
(A)
6
Rated operation current Ie at AC-15, 230 V
(A)
6
Rated operation current Ie at DC-13, 24 V
(A)
3
Rated operation current Ie at DC-13, 125 V
(A)
0.55
Rated operation current Ie at DC-13, 230 V
(A)
0.27
Output electronic
No
Forced opening
Yes
Type of interface
None
Type of interface for safety communication
None
Construction type housing
Cuboid
Coating housing
Other
Alignment of the control element
Roller cam straight
Type of electric connection
Cable entry metrical
With status indication
No
Suitable for safety functions
Yes
Explosion safety category for gas
None
Explosion safety category for dust
None
Ambient temperature during operating
(°C)
-25 - 85
Degree of protection (IP)
IP65
Switching function latching
No
Stock and logistics
Height
0.097 m
Width
0.045 m
Depth
0.042 m
Packaging
item
Weight
0.068 kg
HS code
85365080
Country of Origin
DE
