Siemens
3SE66052BA
Magnetic proximity switch
Manufacturer part number: 3SE66052BA
Serie:
Type: CONTACT BLOCK, RECTANGULAR,
EAN-code: 4011209398627
SKU Omnical: 1019114
Stock: 0.
Estimated lead time: 15 days *
PreOrder
S10
€
91,50
per item
€
60,76
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

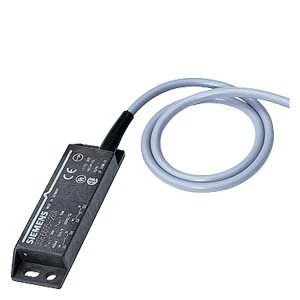

3SE66052BA Siemens Magnetic proximity switch
Siemens Magnetic proximity switch Magnetic switch contact block, rectangular large 25x88 mm, contact ele
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Number of semiconductor outputs with signalling function
0
Number of contact energized outputs with signalling function
0
Number of protected semiconductor outputs
0
Number of protected contact energized outputs
0
Type of actuation
Magnet
Type of electric connection
Cable
Type of switching output
Dry reed contact
Width sensor
(mm)
25
Height of sensor
(mm)
13
Length of sensor
(mm)
88
Diameter sensor
(mm)
0
Explosion safety category for gas
None
Explosion safety category for dust
None
Construction type housing
Cuboid
Material housing
Plastic
Protected switch distance OFF
(mm)
15
Protected switch distance ON
(mm)
5
Category according to EN 954-1
4
Performance level according to EN ISO 13849-1
Level e
Max. output current at protected output
(mA)
0
Ambient temperature
(°C)
-25 - 70
Mechanical mounting condition for sensor
Not flat
Min. output current
(mA)
0
Rated supply voltage at AC 50 Hz
(V)
0 - 0
Rated supply voltage at AC 60 Hz
(V)
0 - 0
Rated supply voltage at DC
(V)
0 - 0
Voltage type
AC/DC
Cross-/short circuit identification possible
Yes
Switching distance
(mm)
0
With monitoring function downstream switching devices
No
Suitable for safety functions
Yes
Degree of protection (IP)
IP67
SIL according to IEC 61508
3
Stock and logistics
Height
0.068 m
Width
0.072 m
Depth
0.137 m
Packaging
item
Weight
0.162 kg
HS code
85365080
Country of Origin
DE
