Siemens
3SF13241SB211BA3

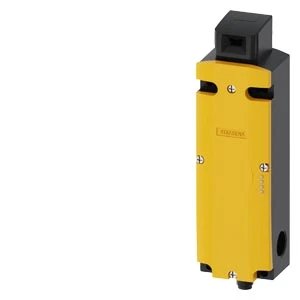

Position switch with guard locking
Manufacturer part number: 3SF13241SB211BA3
Serie:
Type: POS.SWITCH W.ASISAFE INTEGR.ELEC...
EAN-code: 4011209778276
SKU Omnical: 2024203
Stock: 0.
Estimated lead time: 10 days *
PreOrder
S18
€
459,46
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
3SF13241SB211BA3 Siemens Position switch with guard locking
Siemens Position switch with guard locking Safety position switch with tumbler, 1300 N, 5 directions, M12, plasti
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
With status indication
Yes
Suitable for safety functions
Yes
Guard locking force
(N)
1300
With escape release
No
Locking mechanism
Operating current principle
Rated control supply voltage magnet drive at AC 50 Hz
(V)
0 - 0
Rated control supply voltage magnet drive at AC 60 Hz
(V)
0 - 0
Rated control supply voltage magnet drive at DC
(V)
24 - 24
Width sensor
(mm)
54
Height of sensor
(mm)
43.5
Length of sensor
(mm)
185
Number of safety auxiliary contacts
4
Number of contacts as normally closed contact
0
Number of contacts as normally open contact
0
Number of contacts as change-over contact
0
Type of switching contact
Slow-action switch
Rated operation current Ie at AC-15, 24 V
(A)
0
Rated operation current Ie at AC-15, 125 V
(A)
0
Rated operation current Ie at AC-15, 230 V
(A)
0
Rated operation current Ie at DC-13, 24 V
(A)
0
Rated operation current Ie at DC-13, 125 V
(A)
0
Rated operation current Ie at DC-13, 230 V
(A)
0
Construction type housing
Special construction
Material housing
Plastic
Type of interface
AS-Interface
Type of interface for safety communication
AS-Interface Safety at Work
Type of electric connection
Plug-in connection M12
Explosion safety category for gas
None
Explosion safety category for dust
None
Ambient temperature during operating
(°C)
-25 - 60
Degree of protection (IP)
IP66/IP67
Type of guard locking
Operating current principle
Coating housing
Uncoated
Stock and logistics
Height
0.084 m
Width
0.062 m
Depth
0.213 m
Packaging
item
Weight
0.544 kg
HS code
85365019
Country of Origin
DE
