Siemens
3UG46221AW30
Current monitoring relay
Manufacturer part number: 3UG46221AW30
Serie:
Type: DIGITAL MONITORING RELAY
EAN-code: 4011209642423
SKU Omnical: 2011102
Stock: 0.
Estimated lead time: 8 days *
PreOrder
S10
€
231,00
per item
€
153,38
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

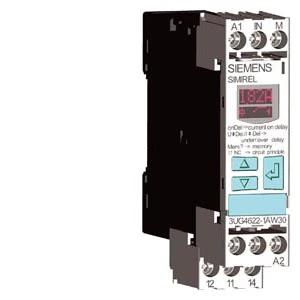

3UG46221AW30 Siemens Current monitoring relay
Siemens Current monitoring relay Digital current monitoring relay, 22.5 mm, 0.1-10 A, AC/DC
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Type of electric connection
Screw connection
With detachable clamps
Yes
Single-phase under current possible
Yes
Three-phase under current possible
No
Single-phase overcurrent possible
Yes
Width
(mm)
22.5
Three-phase overcurrent possible
No
Single-phase hysteresis possible
No
Three-phase hysteresis possible
No
Contains function DC-voltage under current
Yes
Contains function DC-voltage overcurrent
Yes
Function DC-current hysteresis
Yes
Rated control supply voltage at AC 50 Hz
(V)
20.4 - 264
Rated control supply voltage at AC 60 Hz
(V)
20.4 - 264
Rated control supply voltage at DC
(V)
20.4 - 264
Voltage type for actuating
AC/DC
Current measuring range
(A)
0.05 - 15
Min. adjustable delay-on energization time
(s)
0.1
Max. permitted delay-on energization time
(s)
20
Min. adjustable off-delay time
(s)
0.1
Max. permitted off-delay time
(s)
20
Number of contacts as normally closed contact
0
Number of contacts as normally open contact
0
Number of contacts as change-over contact
1
Height
(mm)
92
Depth
(mm)
91
Stock and logistics
Height
0.107 m
Width
0.029 m
Depth
0.099 m
Packaging
item
Weight
0.15 kg
HS code
85364900
Country of Origin
DE
