Siemens
3UG46331AL30
Voltage monitoring relay
Manufacturer part number: 3UG46331AL30
Serie:
Type: DIGITAL MONITORING RELAY
EAN-code: 4011209642478
SKU Omnical: 1019348
Stock: 0.
Estimated lead time: 8 days *
PreOrder
S10
€
221,00
per item
€
146,74
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

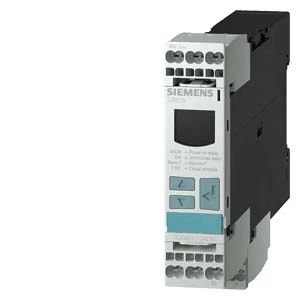

3UG46331AL30 Siemens Voltage monitoring relay
Siemens Voltage monitoring relay Digital monitoring relay voltage monitoring, 22.5 mm from 17 to 275 V
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Type of electric connection
Screw connection
With detachable clamps
Yes
Single-phase under voltage possible
Yes
Three-phase under voltage possible
No
Single-phase over voltage possible
Yes
Width
(mm)
22.5
Three-phase over voltage possible
No
Single-phase hysteresis possible
Yes
Three-phase hysteresis possible
No
Contains function DC-under voltage
Yes
Contains function DC-over voltage
Yes
Contains function DC-voltage hysteresis
Yes
Voltage measuring range 1
(V)
17 - 275
Type of voltage measuring range
AC/DC
Rated control supply voltage at AC 50 Hz
(V)
17 - 275
Rated control supply voltage at AC 60 Hz
(V)
17 - 275
Rated control supply voltage at DC
(V)
17 - 275
Voltage type for actuating
AC/DC
Response value voltage
(V)
17 - 275
Min. adjustable delay-on energization time
(s)
0.1
Max. permitted delay-on energization time
(s)
20
Min. adjustable off-delay time
(s)
0.1
Max. permitted off-delay time
(s)
20
Number of contacts as normally closed contact
0
Number of contacts as normally open contact
0
Number of contacts as change-over contact
1
Height
(mm)
92
Depth
(mm)
91
Stock and logistics
Height
0.107 m
Width
0.029 m
Depth
0.099 m
Packaging
item
Weight
0.138 kg
HS code
85364900
Country of Origin
DE
