Siemens
3UG48322AA40
Voltage monitoring relay
Manufacturer part number: 3UG48322AA40
Serie:
Type: CURRENT MTRG FOR IO LINK 10-600V...
EAN-code: 4011209895867
SKU Omnical: 2394288
Stock: 0.
Estimated lead time: 8 days *
PreOrder
S10
$
290.67
per item
$
193.01
per item
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

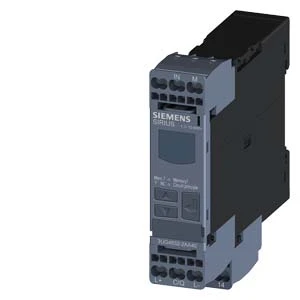

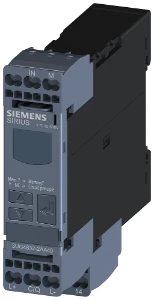

3UG48322AA40 Siemens Voltage monitoring relay
Siemens Voltage monitoring relay Monitoring relay, digital, voltage monitoring, 22.5 mm for IO-Link 10
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Type of electric connection
Spring clamp connection
With detachable clamps
Yes
Single-phase under voltage possible
Yes
Three-phase under voltage possible
No
Single-phase over voltage possible
Yes
Width
(mm)
22.5
Three-phase over voltage possible
No
Single-phase hysteresis possible
Yes
Three-phase hysteresis possible
No
Contains function DC-under voltage
Yes
Contains function DC-over voltage
Yes
Contains function DC-voltage hysteresis
Yes
Voltage measuring range 1
(V)
10 - 600
Type of voltage measuring range
AC/DC
Rated control supply voltage at AC 50 Hz
(V)
0 - 0
Rated control supply voltage at AC 60 Hz
(V)
0 - 0
Rated control supply voltage at DC
(V)
18 - 30
Voltage type for actuating
DC
Response value voltage
(V)
10 - 600
Min. adjustable delay-on energization time
(s)
0
Max. permitted delay-on energization time
(s)
999.9
Min. adjustable off-delay time
(s)
0
Max. permitted off-delay time
(s)
999.9
Number of contacts as normally closed contact
0
Number of contacts as normally open contact
0
Number of contacts as change-over contact
1
Height
(mm)
94
Depth
(mm)
91
Stock and logistics
Height
0.111 m
Width
0.034 m
Depth
0.099 m
Packaging
item
Weight
0.147 kg
HS code
85364900
Country of Origin
DE
