Siemens
3UG48411CA40

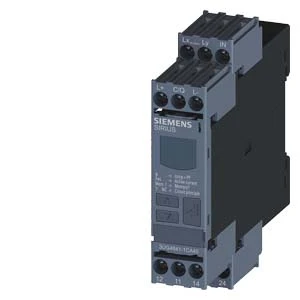

Effective power (cos phi) monitoring relay
Manufacturer part number: 3UG48411CA40
Serie:
Type: COS+ACT. CURRENT MTRG FOR IO LIN...
EAN-code: 4011209895874
SKU Omnical: 2394289
Stock: 0.
Estimated lead time: 8 days *
PreOrder
S10
€
288,00
per item
€
191,23
per item
EUR | Excluding VAT
Quantity
items
Add to cart
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
3UG48411CA40 Siemens Effective power (cos phi) monitoring relay
Siemens Effective power (cos phi) monitoring relay Monitoring relay, digital, cos-phi a. current monitoring for IO-Link 9
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Type of electric connection
Screw connection
Rated control supply voltage at AC 50 Hz
(V)
0 - 0
Rated control supply voltage at AC 60 Hz
(V)
0 - 0
Rated control supply voltage at DC
(V)
24 - 24
Voltage type for actuating
DC
Width
(mm)
22.5
With detachable clamps
Yes
Rated voltage
(V)
90 - 690
Measurement current
(A)
0.2 - 10
Rated operation frequency
(Hz)
0 - 0
Number of phases
1
Adjustable setting value for Cos-Phi
0.1 - 0.99
Min. adjustable delay-on energization time
(s)
0
Max. permitted delay-on energization time
(s)
999.9
Min. adjustable off-delay time
(s)
0
Max. permitted off-delay time
(s)
999.9
Number of contacts as normally closed contact
0
Number of contacts as normally open contact
0
Number of contacts as change-over contact
2
Height
(mm)
102
Depth
(mm)
91
Stock and logistics
Height
0.111 m
Width
0.04 m
Depth
0.097 m
Packaging
item
Weight
0.182 kg
HS code
85364900
Country of Origin
DE
