Siemens
3UG55141BR20
Phase monitoring relay
Manufacturer part number: 3UG55141BR20
Serie:
Type: 3UG5
EAN-code: 4047621099927
SKU Omnical: 2688965
Stock:
22 items.
Delivery time: 1-2 business days.
InStock
S10
$
220.87
per item
$
146.66
per item
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

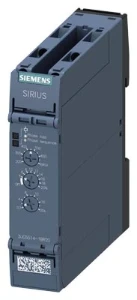

3UG55141BR20 Siemens Phase monitoring relay
Siemens Phase monitoring relay Line monitoring relay, analog, phase failure, phase sequence, asymmetry, undervoltage 2 CO screw terminal
Datasheet
Type of electric connection
Screw connection
With detachable clamps
Yes
Rated control supply voltage at AC 50 Hz
(V)
200 - 690
Rated control supply voltage at AC 60 Hz
(V)
200 - 690
Width
(mm)
22.5
Voltage type for actuating
AC
Phase sequence monitoring
Yes
Phase failure detection
Yes
Function under voltage detection
Yes
Function over voltage detection
No
Phase imbalance monitoring
Yes
Voltage measuring range
(V)
160 - 760
Min. adjustable off-delay time
(s)
0.1
Max. permitted off-delay time
(s)
20
Number of contacts as normally closed contact
0
Number of contacts as normally open contact
0
Number of contacts as change-over contact
2
Height
(mm)
100
Depth
(mm)
90
Stock and logistics
Height
0.038 m
Width
0.111 m
Depth
0.127 m
Packaging
item
Weight
0.169 kg
HS code
85364900
Country of Origin
DE
