Siemens
3UG58162AA40
Phase monitoring relay
Manufacturer part number: 3UG58162AA40
Serie:
Type: 3UG5
EAN-code: 4047621100012
SKU Omnical: 2688973
Stock: 0.
Estimated lead time: 8 days *
PreOrder
S10
€
274,00
per item
€
181,94
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

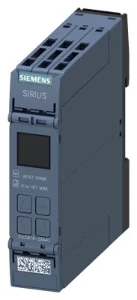

3UG58162AA40 Siemens Phase monitoring relay
Siemens Phase monitoring relay Line monitoring relay, digital, phase failure, phase sequence, asymmet
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Type of electric connection
Spring clamp connection
With detachable clamps
Yes
Rated control supply voltage at DC
(V)
24 - 24
Width
(mm)
22.5
Voltage type for actuating
DC
Phase sequence monitoring
Yes
Phase failure detection
Yes
Function under voltage detection
Yes
Function over voltage detection
Yes
Phase imbalance monitoring
Yes
Voltage measuring range
(V)
90 - 760
Min. adjustable delay-on energization time
(s)
0.1
Max. permitted delay-on energization time
(s)
30
Min. adjustable off-delay time
(s)
0.1
Max. permitted off-delay time
(s)
30
Number of contacts as normally closed contact
0
Number of contacts as normally open contact
0
Number of contacts as change-over contact
1
Height
(mm)
100
Depth
(mm)
90
Stock and logistics
Height
0.038 m
Width
0.111 m
Depth
0.127 m
Packaging
item
Weight
0.18 kg
HS code
85364900
Country of Origin
DE
