Siemens

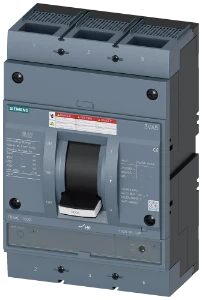

3VA55705EC320AA0
Power circuit-breaker for trafo/generator/installation protection
Manufacturer part number: 3VA55705EC320AA0
Serie:
Type: MCCB_UL_FS800_700A_3P_35KA_TM_ FTAM
EAN-code: 4042949436263
SKU Omnical: 4025561
Stock: 0.
Estimated lead time: 40 days *
PreOrder
S21
$
4,173.32
per item
$
2,771.09
per item
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
3VA55705EC320AA0 Siemens Power circuit-breaker for trafo/generator/installation protection
Siemens Power circuit-breaker for trafo/generator/installation protection Circuit breaker 3VA5 UL frame 800 breaking capacity class M 35 kA @ 48
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Rated permanent current Iu
(A)
700
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
(kA)
55
Overload release current setting
(A)
600 - 600
Adjustment range undelayed short-circuit release
(A)
3500 - 7000
Integrated earth fault protection
No
Device construction
Built-in device fixed built-in technique
Suitable for DIN rail (top hat rail) mounting
No
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as change-over contact
0
With switched-off indicator
No
With under voltage release
No
Number of poles
3
Position of connection for main current circuit
Front side
Type of control element
Rocker lever
Motor drive integrated
No
Degree of protection (IP)
IP40
Rated voltage
(V)
690 - 690
DIN rail (top hat rail) mounting optional
No
Complete device with protection unit
Yes
With integrated under voltage release
No
Stock and logistics
Height
0.18 m
Width
0.25 m
Depth
0.36 m
Packaging
item
Weight
14 kg
HS code
85362090
Country of Origin
DE
