Siemens
3VA57106EC312AA0
Power circuit-breaker for trafo/generator/installation protection
Manufacturer part number: 3VA57106EC312AA0
Serie:
Type: MCCB_UL_FS1200_1000A_3P_65KA_TM_...
EAN-code: 4001869602684
SKU Omnical: 4190962
Stock: 0.
Estimated lead time: 57 days *
PreOrder
S21
$
8,933.86
per item
$
5,932.08
per item
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

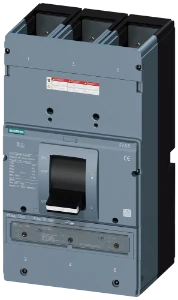

3VA57106EC312AA0 Siemens Power circuit-breaker for trafo/generator/installation protection
Siemens Power circuit-breaker for trafo/generator/installation protection circuit breaker 3VA5 UL frame 1200 breaking capacity class H 65kA @ 480 V 3-pole, line protection TM230, FTAM, In=1000A 100%-rated, overload prot...
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Rated permanent current Iu
(A)
1000
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
(kA)
70
Overload release current setting
(A)
1000 - 1000
Adjustment range undelayed short-circuit release
(A)
5000 - 10000
Integrated earth fault protection
No
Device construction
Built-in device fixed built-in technique
Suitable for DIN rail (top hat rail) mounting
No
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as change-over contact
0
With switched-off indicator
No
Number of poles
3
Type of control element
Rocker lever
Motor drive integrated
No
Degree of protection (IP)
IP40
Rated voltage
(V)
600 - 600
DIN rail (top hat rail) mounting optional
No
Complete device with protection unit
Yes
With integrated under voltage release
No
Stock and logistics
Height
0.245 m
Width
0.3 m
Depth
0.47 m
Packaging
item
Weight
24.7 kg
HS code
85362090
Country of Origin
MX
