Siemens
5SD74836
Surge protection device for power supply systems
Manufacturer part number: 5SD74836
Serie:
Type: SPD T1/T2, 1000V DC
EAN-code: 4001869476940
SKU Omnical: 2408138
Stock: 0.
Estimated lead time: 8 days *
PreOrder
S11
$
364.58
per item
$
218.75
per item
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

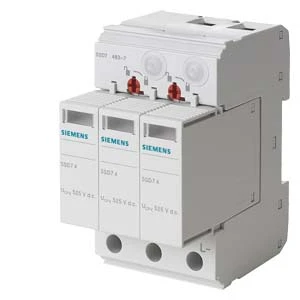

5SD74836 Siemens Surge protection device for power supply systems
Siemens Surge protection device for power supply systems Surge arrester type 1/type 2, UC 1050 V DC, Imax 40 kA, short-circuit
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Nominal discharge surge current (8/20)
(kA)
40
Nominal voltage AC
(V)
0
Nominal voltage DC
(V)
1000
Max. continuous voltage AC
(V)
0
Max. continuous voltage DC
(V)
1000
Max. PV-voltage
(V)
1050
Voltage protection level
(kV)
3.5
Voltage protection level L-N
(kV)
0
Voltage protection level N-PE
(kV)
0
Mounting method
DIN rail (top hat rail) 35 mm
Construction size
3 modular spacing
Max. conductor cross section solid (solid, stranded)
(mm²)
35
Max. conductor cross section flexible (fine-strand)
(mm²)
25
With remote signalling contact
No
Integrated backup fuse
No
Signalling at the device
None
Category type 2
Yes
Degree of protection (IP)
IP20
System configuration DC
No
System configuration IT
No
System configuration TN
No
System configuration TN-C
No
System configuration TN-C-S
No
System configuration TN-S
No
System configuration TT
No
System configuration other
No
Number of conductors (without earthing)
2
Short-circuit breaking capacity (Isccr)
(kA)
0.3
Max. discharge surge current (8/20)
(kA)
40
Integrated short-circuit protection
No
Stock and logistics
Height
0.078 m
Width
0.106 m
Depth
0.058 m
Packaging
item
Weight
0.409 kg
HS code
85354000
Country of Origin
DE
