Siemens

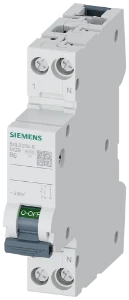

5SL60066
Miniature circuit breaker (MCB)
Manufacturer part number: 5SL60066
Serie:
Type: CIRCUIT BREAKER 6KA 1+N/1MW B6
EAN-code: 4001869533803
SKU Omnical: 1216502
Stock:
148 items.
Delivery time: 1-2 business days.
InStock
XHF
$
37.66
per item
$
22.60
per item
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
5SL60066 Siemens Miniature circuit breaker (MCB)
Siemens Miniature circuit breaker (MCB) Miniature circuit breaker 230 V 6 kA, 1+N-pole/1 MW B6
Datasheet
Rated current
(A)
6
Number of poles (total)
2
Concurrently switching neutral conductor
Yes
Release characteristic
B
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
(kA)
6
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
(kA)
6
Rated voltage
(V)
230
Additional equipment possible
Yes
Voltage type
AC
Current limiting class
3
Over voltage category
3
Pollution degree
2
Width in number of modular spacings
1
Built-in depth
(mm)
70
Degree of protection (IP)
IP20
Number of protected poles
1
Frequency
(Hz)
50 - 50
Suitable for flush-mounted installation
No
Rated insulation voltage Ui
(V)
250
Rated impulse withstand voltage Uimp
(kV)
4
Ambient temperature during operating
(°C)
-25 - 60
Connectable conductor cross section multi-wired
(mm²)
0.75 - 16
Connectable conductor cross section solid-core
(mm²)
0.75 - 16
Explosion-proof
No
Flush-mounted installation
No
Stock and logistics
Height
0.083 m
Width
0.021 m
Depth
0.093 m
Packaging
item
Weight
0.12 kg
HS code
85362010
Country of Origin
RO
