Siemens
5SL61107
Miniature circuit breaker (MCB)
Manufacturer part number: 5SL61107
Serie:
Type: CIRCUIT BREAKER 6KA 1POL C10
EAN-code: 4001869388182
SKU Omnical: 2097665
Stock: 0.
Estimated lead time: 8 days *
PreOrder
XHF
$
34.65
per item
$
20.79
per item
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

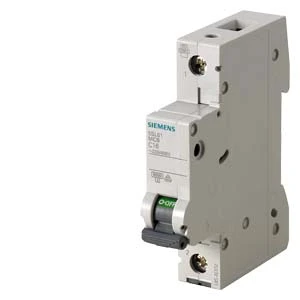

5SL61107 Siemens Miniature circuit breaker (MCB)
Siemens Miniature circuit breaker (MCB) Miniature circuit breaker 230/400 V 6 kA, 1-pole, C, 10 A
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Rated current
(A)
10
Number of poles (total)
1
Concurrently switching neutral conductor
No
Release characteristic
C
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
(kA)
6
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
(kA)
6
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
(kA)
6
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
(kA)
6
Rated voltage
(V)
400
Additional equipment possible
Yes
Voltage type
AC
Current limiting class
3
Over voltage category
3
Pollution degree
2
Width in number of modular spacings
1
Built-in depth
(mm)
70
Degree of protection (IP)
IP20
Number of protected poles
1
Frequency
(Hz)
50 - 50
Suitable for flush-mounted installation
No
Ambient temperature during operating
(°C)
-25 - 45
Connectable conductor cross section multi-wired
(mm²)
0.75 - 25
Connectable conductor cross section solid-core
(mm²)
0.75 - 25
Explosion-proof
No
Flush-mounted installation
No
Stock and logistics
Height
0.083 m
Width
0.021 m
Depth
0.093 m
Packaging
item
Weight
0.129 kg
HS code
85362010
Country of Origin
DE
