5SM34156KK
Residual current circuit breaker (RCCB)
Manufacturer part number: 5SM34156KK
Serie:
Type: RCCB
EAN-code: 4001869272733
SKU Omnical: 2408691
Stock: 0.
Estimated lead time: 35 days *
PreOrder
S11
€
1.850,00
per item
€
1.110,00
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

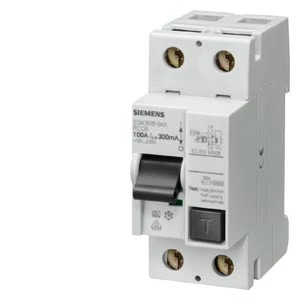

5SM34156KK Siemens Residual current circuit breaker (RCCB)
Siemens Residual current circuit breaker (RCCB) RCCB, 2-pole, type A, In: 125 A, 100 mA, Un AC: 230 V
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Number of poles
2
Rated fault current
(A)
0.1
Rated current
(A)
125
Leakage current type
A
Selective protection
No
Rated voltage
(V)
230
Mounting method
DIN rail
Short-circuit breaking capacity (Icw)
(kA)
10
Surge current capacity
(kA)
1
Frequency
50 Hz
Additional equipment possible
Yes
Degree of protection (IP)
IP20
Construction size (according to DIN 43880)
1
Width in number of modular spacings
2
Built-in depth
(mm)
70
Short-time delayed tripping
No
With interlocking device
Yes
Ambient temperature during operating
(°C)
-25 - 45
Pollution degree
2
Connectable conductor cross section multi-wired
(mm²)
1.5 - 50
Connectable conductor cross section solid-core
(mm²)
1.5 - 50
Voltage type
AC
Explosion-proof
No
Stock and logistics
Height
0.079 m
Width
0.072 m
Depth
0.09 m
Packaging
item
Weight
0.274 kg
HS code
85362090
Country of Origin
DE
