Siemens
5SU13266FP16
Earth leakage circuit breaker
Manufacturer part number: 5SU13266FP16
Serie:
Type: RCBO 2P B16 6kA type A 30mA 2TE
EAN-code: 4001869561677
SKU Omnical: 4047753
Stock: 0.
Estimated lead time: 8 days *
PreOrder
S11
$
244.73
per item
$
146.84
per item
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

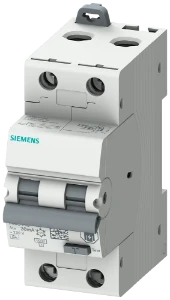

5SU13266FP16 Siemens Earth leakage circuit breaker
Siemens Earth leakage circuit breaker RCBO, 6 kA, 2-pole type A, 30 mA, B char., In: 16 A Un: 230 V
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Number of poles (total)
2
Number of protected poles
2
Rated current
(A)
16
Rated fault current
(A)
0.03
Release characteristic
B
Concurrently switching neutral conductor
Yes
Leakage current type
A
Rated short-circuit breaking capacity according to IEC 60947-2
(kA)
7.5
Rated voltage
(V)
230
Current limiting class
3
Over voltage category
2
Pollution degree
3
Width in number of modular spacings
2
Built-in depth
(mm)
70
Degree of protection (IP)
IP20
Suitable for flush-mounted installation
Yes
Surge current capacity
(kA)
0.25
Voltage type
AC
Anti-nuisance tripping version
Yes
Rated insulation voltage Ui
(V)
500
Rated impulse withstand voltage Uimp
(kV)
4
Rated short-circuit breaking capacity according to EN 61009
(kA)
6
Rated short-circuit breaking capacity Icn according to EN 61009-1
(kA)
6
Disconnection characteristic
Undelayed
With interlocking device
Yes
Connectable conductor cross section solid-core
(mm²)
1 - 35
Connectable conductor cross section multi-wired
(mm²)
1 - 35
Flush-mounted installation
Yes
Stock and logistics
Height
0.082 m
Width
0.04 m
Depth
0.096 m
Packaging
item
Weight
0.24 kg
HS code
85362010
Country of Origin
DE
