Siemens
5SU13367FP10
Earth leakage circuit breaker
Manufacturer part number: 5SU13367FP10
Serie:
Type: RCBO 3P C10 6KA type A 30mA 3MW
EAN-code: 4001869577906
SKU Omnical: 4047772
Stock: 0.
Estimated lead time: 8 days *
PreOrder
S11
€
326,00
per item
€
195,60
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

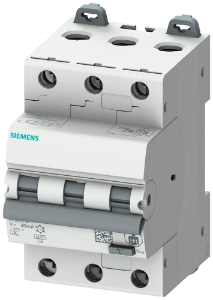

5SU13367FP10 Siemens Earth leakage circuit breaker
Siemens Earth leakage circuit breaker RCBO, 6 kA, 3-pole type A, 30 mA, C char, In: 10 A Un: 400 V
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Number of poles (total)
3
Number of protected poles
3
Rated current
(A)
10
Rated fault current
(A)
0.03
Release characteristic
C
Concurrently switching neutral conductor
No
Leakage current type
A
Rated short-circuit breaking capacity according to IEC 60947-2
(kA)
6
Rated voltage
(V)
400
Current limiting class
3
Over voltage category
2
Pollution degree
3
Width in number of modular spacings
3
Built-in depth
(mm)
70
Degree of protection (IP)
IP20
Suitable for flush-mounted installation
Yes
Surge current capacity
(kA)
0.25
Voltage type
AC
Anti-nuisance tripping version
Yes
Rated insulation voltage Ui
(V)
500
Rated impulse withstand voltage Uimp
(kV)
4
Rated short-circuit breaking capacity according to EN 61009
(kA)
6
Rated short-circuit breaking capacity Icn according to EN 61009-1
(kA)
6
Disconnection characteristic
Undelayed
With interlocking device
Yes
Connectable conductor cross section solid-core
(mm²)
1 - 35
Connectable conductor cross section multi-wired
(mm²)
1 - 35
Flush-mounted installation
Yes
Stock and logistics
Height
0.082 m
Width
0.04 m
Depth
0.096 m
Packaging
item
Weight
0.338 kg
HS code
85362010
Country of Origin
DE
