Siemens
5SY63107
Miniature circuit breaker (MCB)
Manufacturer part number: 5SY63107
Serie:
Type: CIRCUIT BREAKER 6KA 3POL C10
EAN-code: 4001869246970
SKU Omnical: 1022005
Stock:
17 items.
Delivery time: 1-2 business days.
InStock
S11
€
121,40
per item
€
72,84
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

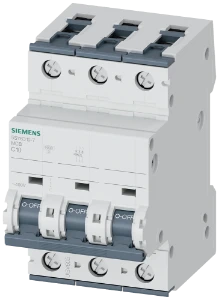

5SY63107 Siemens Miniature circuit breaker (MCB)
Siemens Miniature circuit breaker (MCB) Miniature circuit breaker 400 V 6 kA, 3-pole, C, 10 A, D=70 mm
Datasheet
Release characteristic
C
Number of poles (total)
3
Rated current
(A)
10
Rated voltage
(V)
400
Voltage type
AC
Current limiting class
3
Concurrently switching neutral conductor
No
Over voltage category
3
Pollution degree
3
Width in number of modular spacings
3
Built-in depth
(mm)
70
Additional equipment possible
Yes
Degree of protection (IP)
IP20
Number of protected poles
3
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
(kA)
6
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
(kA)
6
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
(kA)
15
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
(kA)
15
Frequency
(Hz)
50 - 50
Suitable for flush-mounted installation
No
Rated insulation voltage Ui
(V)
440
Rated impulse withstand voltage Uimp
(kV)
4
Ambient temperature during operating
(°C)
-25 - 55
Connectable conductor cross section multi-wired
(mm²)
0.75 - 35
Connectable conductor cross section solid-core
(mm²)
0.75 - 35
Explosion-proof
No
Flush-mounted installation
No
Stock and logistics
Height
0.084 m
Width
0.058 m
Depth
0.094 m
Packaging
item
Weight
0.453 kg
HS code
85362010
Country of Origin
DE
