Siemens
6AV21240JC010AX0
Graphic panel
Manufacturer part number: 6AV21240JC010AX0
Serie:
Type: SIMATIC HMI TP900 Comfort
EAN-code: 4025515079019
SKU Omnical: 2078228
Stock:
73 items.
Delivery time: 1-2 business days.
InStock
S49
€
2.622,24
per item
EUR | Excluding VAT
Quantity
items
Add to cart
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

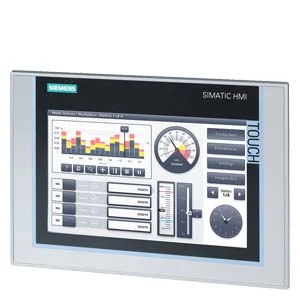

6AV21240JC010AX0 Siemens Graphic panel
Siemens Graphic panel SIMATIC HMI TP900 Comfort
Datasheet
Supply voltage DC
(V)
19.2 - 28.8
Voltage type of supply voltage
DC
Number of HW-interfaces industrial Ethernet
1
Number of interfaces PROFINET
1
Number of HW-interfaces RS-232
0
Number of HW-interfaces RS-422
0
Number of HW-interfaces RS-485
1
Number of HW-interfaces serial TTY
0
Number of HW-interfaces USB
2
Number of HW-interfaces parallel
0
Number of HW-interfaces Wireless
0
Number of HW-interfaces other
0
With SW interfaces
No
Supporting protocol for TCP/IP
Yes
Supporting protocol for PROFIBUS
Yes
Supporting protocol for CAN
No
Supporting protocol for INTERBUS
No
Supporting protocol for ASI
No
Supporting protocol for KNX
No
Supporting protocol for MODBUS
Yes
Supporting protocol for Data-Highway
No
Supporting protocol for DeviceNet
No
Supporting protocol for SUCONET
No
Supporting protocol for LON
No
Supporting protocol for PROFINET IO
Yes
Supporting protocol for PROFINET CBA
No
Supporting protocol for SERCOS
No
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for EtherNet/IP
Yes
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for INTERBUS-Safety
No
Supporting protocol for PROFIsafe
No
Supporting protocol for SafetyBUS p
No
Supporting protocol for other bus systems
Yes
Radio standard Bluetooth
No
Radio standard Wi-Fi 802.11
No
Radio standard GPRS
No
Radio standard GSM
No
Radio standard UMTS
No
IO link master
No
Type of display
TFT
With colour display
Yes
Number of colours of the display
16777216
Number of grey-scales/blue-scales of display
0
Screen diagonal
(inch)
9
Number of pixels, horizontal
800
Number of pixels, vertical
480
Useful project memory/user memory
(kByte)
12000
With numeric keyboard
Yes
With alpha numeric keyboard
Yes
Number of function buttons, programmable
0
With touch screen
Yes
With message indication
Yes
With message system (incl. buffer and confirmation)
Yes
Process value representation (output) possible
Yes
Process default value (input) possible
Yes
With recipes
Yes
Number of password levels
50
With printer output
Yes
Number of online languages
32
Additional software components, loadable
Yes
Degree of protection (IP), front side
IP65
Operating temperature
(°C)
0 - 50
Rail mounting possible
No
Wall mounting/direct mounting
No
Suitable for safety functions
No
Width of the front
(mm)
274
Height of the front
(mm)
190
Built-in depth
(mm)
62.7
Number of buttons with LED
0
Number of system buttons
0
Touch technology
Resistive touch
Stock and logistics
Height
0.012 m
Width
0.036 m
Depth
0.05 m
Packaging
item
Weight
2.54 kg
HS code
85371098
Country of Origin
DE
