Siemens 6AV21252JB230AX0
Siemens

6AV21252JB230AX0

Mobile panel
Manufacturer part number: 6AV21252JB230AX0
Serie:
Type: SIMATIC HMI KTP900F Mobile

EAN-code: 4047623404750
SKU Omnical: 2412955

Stock: 0.

Estimated lead time: 161 days *
PreOrder

S49
4.516,08 per item
EUR | Excluding VAT

Quantity
items
Add to cart
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
paypal
visa
mastercard
wire-transfer
6AV21252JB230AX0 Siemens Mobile panel

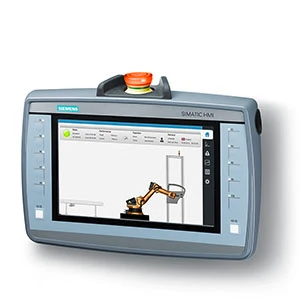

Siemens Mobile panel SIMATIC HMI KTP900F Mobile
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.

Datasheet

Supply voltage DC (V)
19.2 - 28.8
Voltage type of supply voltage
DC
Number of HW-interfaces industrial Ethernet
1
Width (mm)
306.5
Number of interfaces PROFINET
1
Number of HW-interfaces RS-232
0
Number of HW-interfaces RS-422
0
Number of HW-interfaces RS-485
0
Number of HW-interfaces serial TTY
0
Number of HW-interfaces USB
1
Number of HW-interfaces parallel
0
Number of HW-interfaces Wireless
0
Number of HW-interfaces other
0
Supporting protocol for TCP/IP
Yes
Supporting protocol for PROFIBUS
No
Supporting protocol for CAN
No
Supporting protocol for INTERBUS
No
Supporting protocol for ASI
No
Supporting protocol for KNX
No
Supporting protocol for MODBUS
Yes
Supporting protocol for Data-Highway
No
Supporting protocol for DeviceNet
No
Supporting protocol for SUCONET
No
Supporting protocol for LON
No
Supporting protocol for PROFINET IO
Yes
Supporting protocol for PROFINET CBA
No
Supporting protocol for SERCOS
No
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for EtherNet/IP
Yes
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for INTERBUS-Safety
No
Supporting protocol for PROFIsafe
Yes
Supporting protocol for SafetyBUS p
No
Supporting protocol for other bus systems
No
Radio standard Bluetooth
No
Radio standard Wi-Fi 802.11
No
Radio standard GPRS
No
Radio standard GSM
No
Radio standard UMTS
No
IO link master
No
Type of display
TFT
With colour display
Yes
Number of colours of the display
16777216
Screen diagonal (inch)
9
Number of pixels, horizontal
800
Number of pixels, vertical
480
Useful project memory/user memory (kByte)
12000
With alpha numeric keyboard
No
Number of function buttons, programmable
10
With enabling button/emergency-stop switch
Yes
With touch screen
Yes
With message indication
Yes
With message system (incl. buffer and confirmation)
Yes
Process value representation (output) possible
Yes
Process default value (input) possible
Yes
With recipes
Yes
Number of password levels
50
With printer output
No
Number of online languages
32
Degree of protection (IP)
IP65
Operating temperature (°C)
0 - 45
Suitable for emergency stop
Yes
Connection, pluggable
Yes
Max. height of fall (according to IEC 60068-2-32) (m)
1.2
Suitable for safety functions
Yes
Height (mm)
223.7
Depth (mm)
91
Weight (kg)
1.6
Number of buttons with LED
10
Number of system buttons
0

Stock and logistics

Height
0.01 m
Width
0.025 m
Depth
0.032 m

Packaging
item
Weight
1.766 kg
HS code
85371091
Country of Origin
DE
