Siemens
6AV21456KM000AA0
Mobile panel
Manufacturer part number: 6AV21456KM000AA0
Serie:
Type: IWP10F Mobile WebClient
EAN-code: 4047618135300
SKU Omnical: 4251810
Stock: 0.
Estimated lead time: 26 days *
PreOrder
S49
$
5,446.34
per item
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
6AV21456KM000AA0 Siemens Mobile panel

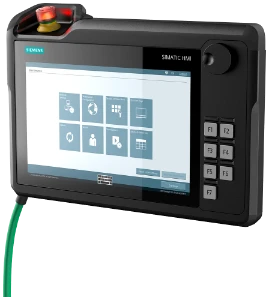

Siemens Mobile panel SIMATIC HMI IWP10F Mobile WebClient
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Supply voltage DC
(V)
20.4 - 28.8
Voltage type of supply voltage
DC
Number of HW-interfaces industrial Ethernet
1
Width
(mm)
327
Number of HW-interfaces RS-232
0
Number of HW-interfaces serial TTY
0
Number of HW-interfaces USB
1
Number of HW-interfaces parallel
0
Number of HW-interfaces Wireless
0
Number of HW-interfaces other
0
Supporting protocol for TCP/IP
Yes
Supporting protocol for CAN
No
Supporting protocol for INTERBUS
No
Supporting protocol for ASI
No
Supporting protocol for KNX
No
Supporting protocol for Data-Highway
No
Supporting protocol for DeviceNet
No
Supporting protocol for SUCONET
No
Supporting protocol for LON
No
Supporting protocol for PROFINET IO
Yes
Supporting protocol for PROFINET CBA
No
Supporting protocol for SERCOS
No
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for INTERBUS-Safety
No
Supporting protocol for PROFIsafe
No
Supporting protocol for SafetyBUS p
No
Radio standard Bluetooth
No
Radio standard GPRS
No
Radio standard GSM
No
Radio standard UMTS
No
IO link master
No
With colour display
Yes
Screen diagonal
(inch)
10
Number of pixels, horizontal
1280
Number of pixels, vertical
800
With alpha numeric keyboard
No
Number of function buttons, programmable
7
With touch screen
Yes
With message indication
Yes
With message system (incl. buffer and confirmation)
Yes
Process value representation (output) possible
Yes
Process default value (input) possible
Yes
With recipes
Yes
With printer output
No
Number of online languages
5
Degree of protection (IP)
IP65
Operating temperature
(°C)
0 - 45
Suitable for emergency stop
Yes
Connection, pluggable
Yes
Max. height of fall (according to IEC 60068-2-32)
(m)
1.2
Suitable for safety functions
Yes
Height
(mm)
232
Depth
(mm)
93
Weight
(kg)
1.5
Number of buttons with LED
7
Stock and logistics
Height
0.13 m
Width
0.335 m
Depth
0.47 m
Packaging
item
Weight
0.001 kg
HS code
85371098
Country of Origin
DE
