Siemens
6DL11356TB000HX1
Fieldbus, decentr. periphery - analogue I/O module
Manufacturer part number: 6DL11356TB000HX1
Serie:
Type: ET 200SP HA, EX-AQ 2xI HART
EAN-code:
SKU Omnical: 4107333
Stock:
1 item.
Delivery time: 1-2 business days.
InStock
UVK
€
570,18
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

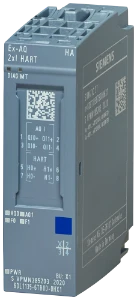

6DL11356TB000HX1 Siemens Fieldbus, decentr. periphery - analogue I/O module
Siemens Fieldbus, decentr. periphery - analogue I/O module SIMATIC ET 200SP HA/ET 200SP Ex-AQ 2xI HART
Datasheet
Voltage type of supply voltage
DC
Width
(mm)
20
Output signal configurable
Yes
Number of analogue inputs
0
Number of analogue outputs
2
Analogue outputs configurable
Yes
Number of HW-interfaces industrial Ethernet
0
Number of HW-interfaces RS-232
0
Number of HW-interfaces RS-422
0
Number of HW-interfaces RS-485
0
Number of HW-interfaces serial TTY
0
Number of HW-interfaces parallel
0
Number of HW-interfaces Wireless
0
Number of HW-interfaces other
0
Supporting protocol for TCP/IP
No
Supporting protocol for CAN
No
Supporting protocol for INTERBUS
No
Supporting protocol for ASI
No
Supporting protocol for KNX
No
Supporting protocol for MODBUS
No
Supporting protocol for Data-Highway
No
Supporting protocol for DeviceNet
No
Supporting protocol for SUCONET
No
Supporting protocol for LON
No
Supporting protocol for PROFINET CBA
No
Supporting protocol for SERCOS
No
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for EtherNet/IP
No
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for INTERBUS-Safety
No
Supporting protocol for PROFIsafe
No
Supporting protocol for SafetyBUS p
No
Radio standard Bluetooth
No
Radio standard Wi-Fi 802.11
No
Radio standard GPRS
No
Radio standard GSM
No
Radio standard UMTS
No
IO link master
No
System accessory
Yes
Degree of protection (IP)
IP20
Rail mounting possible
Yes
Wall mounting/direct mounting
No
Front built-in possible
Yes
Rack-assembly possible
Yes
Suitable for safety functions
No
Appendant operation agent (Ex ia)
Yes
Appendant operation agent (Ex ib)
Yes
Height
(mm)
73
Depth
(mm)
58
Number of HW-interfaces USB
0
Stock and logistics
Height
0.029 m
Width
0.065 m
Depth
0.077 m
Packaging
item
Weight
0.2 kg
HS code
85389091
Country of Origin
DE
