Siemens
6ES72151AG400XB0
PLC CPU-module
Manufacturer part number: 6ES72151AG400XB0
Serie:
Type: CPU 1215C, DC/DC/DC, 14DI/10DO/2...
EAN-code: 4047623402756
SKU Omnical: 1185546
Stock:
31 items.
Delivery time: 1-2 business days.
InStock
S32
€
776,96
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

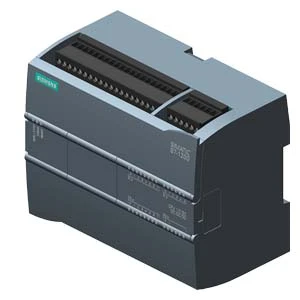

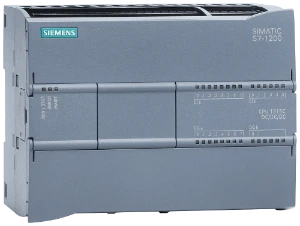

6ES72151AG400XB0 Siemens PLC CPU-module
Siemens PLC CPU-module SIMATIC S7-1200 CPU 1215C DC/DC/DC 14DI / 10DQ / 2AI / 2AQ
Datasheet
Supply voltage DC
(V)
20.4 - 28.8
Voltage type of supply voltage
DC
Number of relay outputs
0
Width
(mm)
130
Model
Compact
Processing time (1K, binary operation)
(ms)
0.08
Number of HW-interfaces industrial Ethernet
1
Number of interfaces PROFINET
1
Number of HW-interfaces RS-232
0
Number of HW-interfaces RS-422
0
Number of HW-interfaces RS-485
0
Number of HW-interfaces serial TTY
0
Number of HW-interfaces USB
0
Number of HW-interfaces parallel
0
Number of HW-interfaces Wireless
0
Number of HW-interfaces other
0
Number of analogue outputs
2
Number of analogue inputs
2
Number of digital inputs
14
Number of digital outputs
10
With optical interface
No
Supporting protocol for TCP/IP
Yes
Supporting protocol for PROFIBUS
Yes
Supporting protocol for CAN
No
Supporting protocol for INTERBUS
No
Supporting protocol for ASI
Yes
Supporting protocol for KNX
No
Supporting protocol for MODBUS
Yes
Supporting protocol for Data-Highway
No
Supporting protocol for DeviceNet
No
Supporting protocol for SUCONET
No
Supporting protocol for LON
No
Supporting protocol for PROFINET IO
Yes
Supporting protocol for PROFINET CBA
No
Supporting protocol for SERCOS
No
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for EtherNet/IP
No
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for INTERBUS-Safety
No
Supporting protocol for PROFIsafe
No
Supporting protocol for SafetyBUS p
No
Supporting protocol for other bus systems
Yes
Radio standard Bluetooth
No
Radio standard Wi-Fi 802.11
No
Radio standard GPRS
No
Radio standard GSM
No
Radio standard UMTS
No
IO link master
No
System accessory
Yes
Redundancy
Yes
With display
No
Type of memory
RAM
Memory size
(kByte)
200
Additional program memory possible
No
Rail mounting possible
Yes
Wall mounting/direct mounting
Yes
Front built-in possible
No
Rack-assembly possible
No
Suitable for safety functions
No
Appendant operation agent (Ex ia)
No
Appendant operation agent (Ex ib)
No
Explosion safety category for gas
ATEX gas-ex-protection, Cat. 3G
Explosion safety category for dust
None
Height
(mm)
100
Depth
(mm)
75
Stock and logistics
Height
0.085 m
Width
0.111 m
Depth
0.14 m
Packaging
item
Weight
0.412 kg
HS code
85371091
Country of Origin
DE
