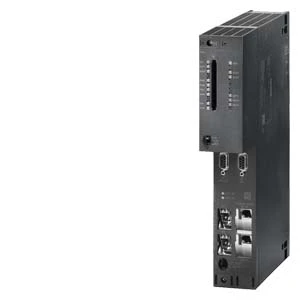

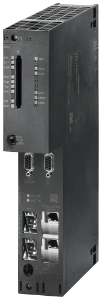

Siemens 6ES74175HT060AB0
Siemens

6ES74175HT060AB0

PLC CPU-module
Manufacturer part number: 6ES74175HT060AB0
Serie:
Type: SIMATIC S7-400H, CPU 417-5H, centra

EAN-code: 4019169202831
SKU Omnical: 1157036

Stock: 5 items.

Delivery time: 1-2 business days.
InStock

ZFV
19.684,50 per item
EUR | Excluding VAT

Quantity
item
Add to cart
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
paypal
visa
mastercard
wire-transfer
6ES74175HT060AB0 Siemens PLC CPU-module
Siemens PLC CPU-module SIMATIC S7-400 CPU 417-5H PN/DP 32 MB

Datasheet

Voltage type of supply voltage
AC/DC
Number of relay outputs
0
Width (mm)
50
Max. number of addressable analogue I/O-ports
8192
Max. number of addressable digital I/O-ports
131072
Model
Modular
Processing time (1K, binary operation) (ms)
0.008
Number of HW-interfaces industrial Ethernet
2
Number of interfaces PROFINET
2
Number of HW-interfaces RS-232
0
Number of HW-interfaces RS-422
0
Number of HW-interfaces RS-485
2
Number of HW-interfaces serial TTY
0
Number of HW-interfaces USB
0
Number of HW-interfaces parallel
0
Number of HW-interfaces Wireless
0
Number of HW-interfaces other
2
Number of analogue outputs
0
Number of analogue inputs
0
Number of digital inputs
0
Number of digital outputs
0
With optical interface
No
Supporting protocol for TCP/IP
Yes
Supporting protocol for PROFIBUS
Yes
Supporting protocol for CAN
No
Supporting protocol for INTERBUS
No
Supporting protocol for ASI
No
Supporting protocol for KNX
No
Supporting protocol for MODBUS
No
Supporting protocol for Data-Highway
No
Supporting protocol for DeviceNet
No
Supporting protocol for SUCONET
No
Supporting protocol for LON
No
Supporting protocol for PROFINET IO
Yes
Supporting protocol for PROFINET CBA
No
Supporting protocol for SERCOS
No
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for EtherNet/IP
No
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for INTERBUS-Safety
No
Supporting protocol for PROFIsafe
Yes
Supporting protocol for SafetyBUS p
No
Supporting protocol for other bus systems
No
Radio standard Bluetooth
No
Radio standard Wi-Fi 802.11
No
Radio standard GPRS
No
Radio standard GSM
No
Radio standard UMTS
No
IO link master
No
System accessory
Yes
Redundancy
Yes
With display
No
Type of memory
RAM
Memory size (kByte)
32000
Additional program memory possible
No
Rail mounting possible
No
Wall mounting/direct mounting
No
Front built-in possible
No
Rack-assembly possible
Yes
Suitable for safety functions
Yes
Category according to EN 954-1
4
Performance level according to EN ISO 13849-1
Level e
Appendant operation agent (Ex ia)
No
Appendant operation agent (Ex ib)
No
Explosion safety category for gas
ATEX gas-ex-protection, Cat. 3G
Explosion safety category for dust
None
Height (mm)
290
Depth (mm)
219
SIL according to IEC 61508
3

Stock and logistics

Height
0.063 m
Width
0.233 m
Depth
0.302 m

Packaging
Package
Weight
1.281 kg
HS code
85371091
Country of Origin
DE
