Siemens
6XV18402AH10
Data and communication cable
Manufacturer part number: 6XV18402AH10
Serie:
Type: IE FC TP Standard Cable GP2x2 so...
EAN-code: 4019169400473
SKU Omnical: 1025922
Stock:
4677 x 1 meter.
Delivery time: 1-2 business days.
InStock
S44
$
2.65
per meter
USD | Excluding VAT
Quantity
x 1 meter
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

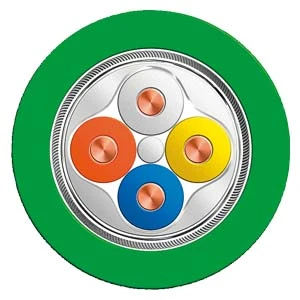

6XV18402AH10 Siemens Data and communication cable
Siemens Data and communication cable IE FC TP std. cable GP,2 x without,2x2,Cat5e,PVC,robust
Datasheet
Conductor surface
Bare
Diameter conductor
(mm)
0.64
Nominal cross section conductor
(mm²)
0
Conductor category
Class 1 = solid
Number of cores
4
Number of stranding elements
2
Stranding element
Quad
Material core insulation
Other
Core identification
Colour
Screen over stranding element
None
Stranding
Bundle
Screen over stranding
Foil + braiding
Suitable for underground installation
No
Material outer sheath
Polyvinyl chloride (PVC)
Specification material outer sheath
Other
Colour outer sheath
Green
Eca
Flame retardant
No
Low smoke (according to EN 61034-2)
No
Outer diameter approx.
(mm)
6.5
Min. permitted bending radius, moving application with forced guidance
(mm)
49
Min. permitted bending radius, moving application/free movement
(mm)
49
Min. permitted bending radius, stationary application/permanent installation
(mm)
49
Permitted cable outer temperature during assembling/handling
(°C)
-40 - 75
Permitted cable outer temperature after assembling without vibration
(°C)
-40 - 75
Category
5E
NVP value
(%)
69
Stock and logistics
Packaging
Package
Weight
0.063 kg
HS code
85444920
Country of Origin
DE
