Siemens
7PV15121AP30
Timer relay
Manufacturer part number: 7PV15121AP30
Serie:
Type: TIME RELAY, SOLID-STATE,
EAN-code: 4011209777330
SKU Omnical: 1125350
Stock: 0.
Estimated lead time: 8 days *
PreOrder
S10
€
39,40
per item
€
26,16
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

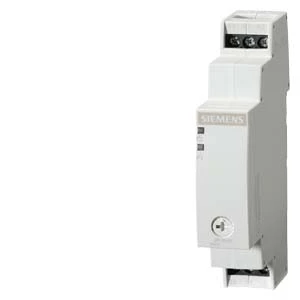

7PV15121AP30 Siemens Timer relay
Siemens Timer relay Timing relay, electronic, ON-delay, 1 CO, 1 time range, 0.5-10s
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Type of electric connection
Screw connection
Function delay-on energization
Yes
Function delay on de-energization
No
Function floating contact on energization
No
Function floating contact on de-energization
No
Width
(mm)
17.5
Function star-delta
No
Function pulse shaping
No
Function flashing, starting with pause, fixed time
No
Function flashing, starting with pulse, fixed time
No
Clock function, starting with pause, variable
No
Clock function, starting with pulse, variable
No
With plug-in socket
No
Remote operation possible
No
Suitable as remote control
No
Pluggable on auxiliary contact block
No
Rated control supply voltage at AC 50 Hz
(V)
200 - 240
Rated control supply voltage at AC 60 Hz
(V)
200 - 240
Rated control supply voltage at DC
(V)
24 - 24
Voltage type for actuating
AC/DC
Time range
(s)
0.5 - 10
Number of outputs, undelayed, normally closed contact
0
Number of outputs, undelayed, normally open contact
0
Number of outputs, undelayed, change-over contact
0
Number of outputs, delayed, normally closed contact
0
Number of outputs, delayed, normally open contact
0
Number of outputs, delayed, change-over contact
1
Outputs, reversible delayed/undelayed
No
With semiconductor output
No
Height
(mm)
90
Depth
(mm)
66.7
Suitable for DIN rail (top hat rail) mounting
No
Suitable for front mounting
No
Stock and logistics
Height
0.022 m
Width
0.082 m
Depth
0.092 m
Packaging
item
Weight
0.065 kg
HS code
85364900
Country of Origin
DE
