Siemens
8WH10205DF00
Component terminal block
Manufacturer part number: 8WH10205DF00
Serie:
Type: TOW-TIER-DI. 2,5QMM 5,2MM,BL-BR
EAN-code: 4001869403212
SKU Omnical: 2418803
Stock: 0.
Estimated lead time: 12 days *
PreOrder
S11
€
9,45
per item
€
5,67
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

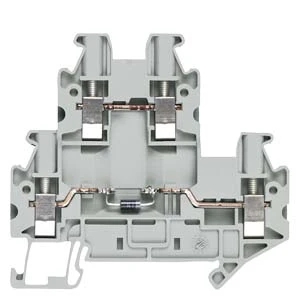

8WH10205DF00 Siemens Component terminal block
Siemens Component terminal block Two-tier diode terminal with screw connection, terminal size 2.5 mm2 t
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Explosion-tested version 'Ex e'
No
Connectable conductor cross section fine-strand without cable end sleeve
(mm²)
0.14 - 4
Connectable conductor cross section fine-strand with cable end sleeve
(mm²)
0.14 - 2.5
Connectable conductor cross section solid-core
(mm²)
0.14 - 4
Connectable conductor cross section multi-wired
(mm²)
0.14 - 1.5
Width
(mm)
7.72
Rated current In
(A)
24
Rated voltage
(V)
500
Type of electrical connection 1
Screw connection
Type of electrical connection 2
Screw connection
Connection position
Sideways
Number of levels
2
Number of clamp positions per level
2
Internally connected stages
No
Mounting method
DIN rail (top hat rail) 35 mm
Material insulation body
Thermoplastic
Operating temperature
(°C)
-165 - -25
Inflammability class of insulation material according to with UL94
V0
Width/grid dimension
(mm)
5
Height at lowest possible mounting height
(mm)
69.9
Length
(mm)
70
Closing plate required
Yes
Colour
Grey
Height
(mm)
69.9
Depth
(mm)
64.3
Stock and logistics
Height
0.005 m
Width
0.065 m
Depth
0.07 m
Packaging
item
Weight
0.016 kg
HS code
85369010
Country of Origin
DE
