Siemens
8WH60010BF01
Multi level installation terminal block
Manufacturer part number: 8WH60010BF01
Serie:
Type: TERM-INATA-2,5MM2 N-DISCON
EAN-code: 4001869447957
SKU Omnical: 2419051
Stock: 0.
Estimated lead time: 8 days *
PreOrder
S11
€
3,64
per item
€
2,18
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
8WH60010BF01 Siemens Multi level installation terminal block

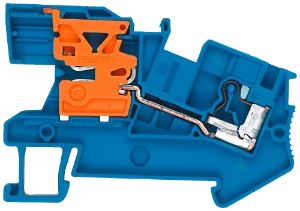

Siemens Multi level installation terminal block Insta through-type terminal 2.5 mm2, 5.2 mm wide blue N isolating
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Connectable conductor cross section fine-strand without cable end sleeve
(mm²)
0.14 - 4
Connectable conductor cross section fine-strand with cable end sleeve
(mm²)
0.14 - 2.5
Connectable conductor cross section solid-core
(mm²)
0.14 - 4
Connectable conductor cross section multi-wired
(mm²)
0.14 - 1.5
Rated current In
(A)
24
Rated voltage
(V)
250
Type of electrical connection 1
Push-in clamp connection
Type of electrical connection 2
Push-in clamp connection
Mounting method
Other
Material insulation body
Thermoplastic
Operating temperature
(°C)
55 - 55
Inflammability class of insulation material according to with UL94
V0
Width/grid dimension
(mm)
5
Height at lowest possible mounting height
(mm)
46.3
Length
(mm)
59
Closing plate required
Yes
Stock and logistics
Height
0.003 m
Width
0.045 m
Depth
0.062 m
Packaging
item
Weight
0.008 kg
HS code
85369010
Country of Origin
DE
