Siemens
8WH60014CF00
Multi level installation terminal block
Manufacturer part number: 8WH60014CF00
Serie:
Type: INSTA-KL 2,5MM2 L N
EAN-code: 4001869447841
SKU Omnical: 2419057
Stock: 0.
Estimated lead time: 8 days *
PreOrder
S11
€
3,54
per item
€
2,12
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

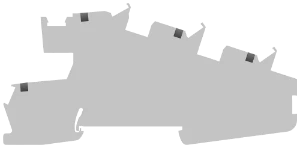

8WH60014CF00 Siemens Multi level installation terminal block
Siemens Multi level installation terminal block Installation terminal L N 2.5 mm2, 5.2 mm width gray
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Connectable conductor cross section fine-strand without cable end sleeve
(mm²)
0.14 - 4
Connectable conductor cross section fine-strand with cable end sleeve
(mm²)
0.14 - 2.5
Connectable conductor cross section solid-core
(mm²)
0.14 - 4
Connectable conductor cross section multi-wired
(mm²)
0.14 - 1.5
Rated current In
(A)
24
Width
(mm)
5.15
Rated voltage
(V)
400
Type of electrical connection 1
Push-in clamp connection
Type of electrical connection 2
Push-in clamp connection
Connection position
Above
Number of potentials
2
Mounting method
Other
Material insulation body
Other
Operating temperature
(°C)
-60 - 105
Inflammability class of insulation material according to with UL94
V0
Width/grid dimension
(mm)
5.2
Height at lowest possible mounting height
(mm)
100.9
Length
(mm)
101
Closing plate required
Yes
Basic colour
Grey
PE-function
No
With N-disconnect slide
No
N function possible
No
With test disconnector
No
Height
(mm)
100.9
Depth
(mm)
48.7
Stock and logistics
Height
0.005 m
Width
0.045 m
Depth
0.102 m
Packaging
item
Weight
0.016 kg
HS code
85369010
Country of Origin
DE
