Siemens
8WH60014GF00
Multi level installation terminal block
Manufacturer part number: 8WH60014GF00
Serie:
Type: INSTA-KL 2,5MM2 PE,L,N-ME-DISCON
EAN-code: 4001869447896
SKU Omnical: 2419061
Stock: 0.
Estimated lead time: 8 days *
PreOrder
S11
€
7,69
per item
€
4,61
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

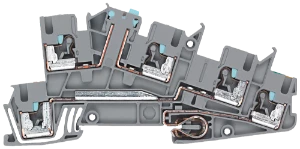

8WH60014GF00 Siemens Multi level installation terminal block
Siemens Multi level installation terminal block Installation terminal 2.5 mm2, 5.2 mm width gray PE, L, N-link-isolating
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Connectable conductor cross section fine-strand without cable end sleeve
(mm²)
0.14 - 4
Connectable conductor cross section fine-strand with cable end sleeve
(mm²)
0.14 - 2.5
Connectable conductor cross section solid-core
(mm²)
0.14 - 4
Connectable conductor cross section multi-wired
(mm²)
0.14 - 1.5
Rated current In
(A)
24
Width
(mm)
5.15
Rated voltage
(V)
400
Type of electrical connection 1
Push-in clamp connection
Type of electrical connection 2
Push-in clamp connection
Connection position
Above
Number of potentials
2
Mounting method
Other
Material insulation body
Other
Operating temperature
(°C)
-60 - 105
Inflammability class of insulation material according to with UL94
V0
Width/grid dimension
(mm)
5.2
Height at lowest possible mounting height
(mm)
100.9
Length
(mm)
101
Closing plate required
Yes
Basic colour
Grey
PE-function
Yes
With N-disconnect slide
Yes
N function possible
Yes
With test disconnector
Yes
Height
(mm)
100.9
Depth
(mm)
48.7
Stock and logistics
Height
0.006 m
Width
0.045 m
Depth
0.1 m
Packaging
item
Weight
0.02 kg
HS code
85369010
Country of Origin
DE
