Socomec
22303010
Switch disconnector
Manufacturer part number: 22303010
Serie:
Type: SIRCO M3 OMSCHAKELAAR 3X100A
EAN-code: 3596032045692
SKU Omnical: 1225858
Stock: 0.
Estimated lead time: 9 days *
PreOrder
T68
$
318.56
per item
$
259.31
per item
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

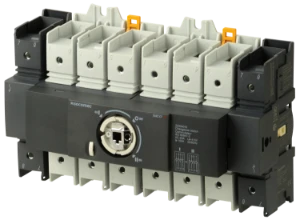

22303010 Socomec Switch disconnector
Socomec Switch disconnector SIRCO M3 OMSCHAKELAAR 3X100A
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Number of poles
3
Rated permanent current Iu
(A)
100
Version as main switch
Yes
Version as maintenance-/service switch
Yes
Version as safety switch
Yes
Version as emergency stop installation
No
Device construction
Built-in device fixed built-in technique
Max. rated operation voltage Ue AC
(V)
800
Rated operation power at AC-23, 400 V
(kW)
45
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as change-over contact
0
Motor drive optional
No
Motor drive integrated
No
Voltage release optional
No
Conditioned rated short-circuit current Iq
(kA)
25
Suitable for floor mounting
No
Suitable for front mounting 4-hole
No
Suitable for front mounting centre
No
Suitable for distribution board installation
Yes
Suitable for intermediate mounting
Yes
Type of control element
Short thumb-grip
Interlockable
Yes
Type of electrical connection of main circuit
Screw connection
Degree of protection (IP), front side
IP20
Version as reversing switch
Yes
Rated operating voltage
(V)
400 - 690
Rated permanent current at AC-21, 400 V
(A)
100
Rated short-time withstand current lcw
(kA)
2.75
Switching power at 400 V
(kW)
45
Colour control element
Black
Number of switches
2
Rated permanent current at AC-23, 400 V
(A)
100
Stock and logistics
Height
0.24 m
Width
0.18 m
Depth
0.1 m
Packaging
box
Weight
1.48 kg
HS code
85365080
Country of Origin
FR
