Spelsberg
61500701
Terminal box
Manufacturer part number: 61500701
Serie:
Type: RK 4/07-7x4²
EAN-code: 4013902858316
SKU Omnical: 4253506
Stock:
29 items.
Delivery time: 1-2 business days.
InStock
SSL Connection
WorldWide Shipping

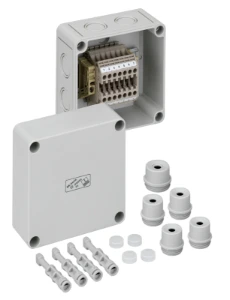

61500701 Spelsberg Terminal box
Spelsberg Terminal box RK 4/07-7x4² Rijenklemmenbehuizing
Datasheet
Number of connection clamps
7
Max. conductor cross section
(mm²)
4
Length
(mm)
110
Width
(mm)
110
Depth
(mm)
90
Extension possible
Yes
Number of inlets
7
Type of inlet
Other
Material
Plastic
Halogen free
Yes
Surface protection
Untreated
Colour
Grey
Degree of protection (IP)
IP66
With cover
Yes
Cover attachment
Screwed
With transparent cover
No
Sealable
Yes
Rated insulation voltage Ui
(V)
400
Circuit integrity
None
Explosion-tested version
No
For Ex-zone gas
None
For Ex-Zone dust
None
Operating temperature
(°C)
-25 - 40
Material plate thickness cabinet
(mm)
3
Impact strength
IK07
Shape
Rectangular
RAL-number
7035
Nominal voltage
(V)
400
Connection type
Screwed terminal
Stock and logistics
Height
0.11 m
Width
0.11 m
Depth
0.09 m
Packaging
item
Weight
0.34 kg
HS code
85369095
Country of Origin
DE
