Stago (Wibe)
CSU71002004
Cable tray/wide span cable tray
Manufacturer part number: CSU71002004
Serie: KB184
Type: Kabelgoot
EAN-code: 8712186041327
SKU Omnical: 4100982
Stock: 0.
Estimated lead time: 14 days *
PreOrder
S62
$
374.60
per 3 meter
$
173.81
per 3 meter
CAD | Excluding VAT
Quantity
x 3 meter
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

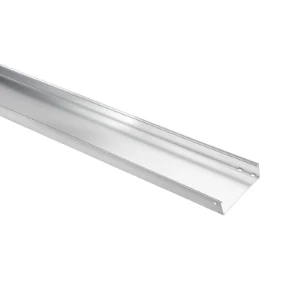

CSU71002004 Stago (Wibe) Cable tray/wide span cable tray
Stago (Wibe) Cable tray/wide span cable tray KB184 GESL. 200 H=110 D=1.0 L=3
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Height
(mm)
110
Width
(mm)
200
Length
(mm)
3000
Mounting perforation in bottom
No
Side wall perforation
No
Material
Steel
Material thickness
(mm)
1
Surface protection
Continuously galvanized
Material quality
Other
Stainless steel, pickled
No
Suitable for circuit integrity
No
Wide span model
No
Model
Without connector
NATO-mounting holes
No
Useful cross section
(mm²)
22000
With cover
No
Weight
(kg/m)
3.45
Load test type according to IEC 61537
Type I
Working length
(mm)
3000
Operating temperature
(°C)
-40 - 120
(m)
0.1 - 3
(N/m)
1205
(N/m)
617
(N/m)
363
Type of connection
Screwed
Stock and logistics
Height
0.11 m
Width
0.2 m
Depth
3 m
Packaging
box
Weight
10.338 kg
