Stago (Wibe)
CSU788545

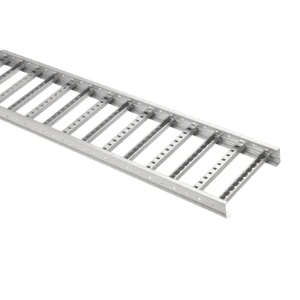

Cable ladder/wide span cable ladder
Manufacturer part number: CSU788545
Serie: LB4000
Type: CSU788545
EAN-code: 8712186109423
SKU Omnical: 1099993
Stock: 0.
Estimated lead time: 11 days *
PreOrder
T82
$
906.04
per 3 meter
$
426.75
per 3 meter
CAD | Excluding VAT
Quantity
x 3 meter
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
CSU788545 Stago (Wibe) Cable ladder/wide span cable ladder
Stago (Wibe) Cable ladder/wide span cable ladder WHS FB 60x200 SA100 L=3m SV
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Width
(mm)
200
Height
(mm)
60
Length
(mm)
3000
Material
Steel
Stainless steel, pickled
No
Surface protection
Continuously galvanized
Type of side joist
Profile (open)
Side wall perforation
Yes
Type of rung
Perforated profile
Fixation rung
Welded
Useful cross section
(mm²)
7800
Rung centre spacing
(mm)
100
Wide span model
No
Suitable for circuit integrity
Yes
Weight
(kg/m)
2.6
Load test type according to IEC 61537
Type I
Corrosion class according to EN ISO 9223
C2
Working length
(mm)
3000
Yes
Operating temperature
(°C)
-40 - 120
(m)
2 - 4
(N/m)
1500
(N/m)
920
(N/m)
650
(N/m)
300
Stock and logistics
Height
0.06 m
Width
0.198 m
Depth
3 m
Packaging
box
Weight
10.346 kg
HS code
73089098
Country of Origin
NL
