Telemecanique Sensors

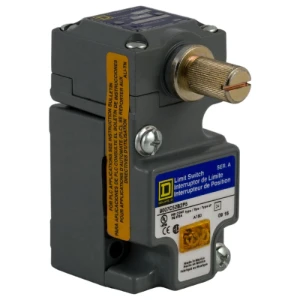

9007C52B2
End switch
Manufacturer part number: 9007C52B2
Serie: Nema Limit Switches
Type: 9007C52B2
EAN-code: 785901783367
SKU Omnical: 2331029
Stock: 0.
Estimated lead time: 60 days *
PreOrder
FVJ
€
514,32
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
9007C52B2 Telemecanique Sensors End switch
Telemecanique Sensors End switch EINDSCHAKELAAR
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Type of control element
Rotary lever
Material housing
Metal
Number of contacts as change-over contact
0
Number of contacts as normally open contact
1
Number of contacts as normally closed contact
1
Number of safety auxiliary contacts
0
Switching function
Quick-break switch
Width sensor
(mm)
39.37
Height of sensor
(mm)
79.756
Length of sensor
(mm)
63.5
Rated operation current Ie at AC-15, 125 V
(A)
6
Rated operation current Ie at AC-15, 230 V
(A)
3
Rated operation current Ie at DC-13, 125 V
(A)
0.55
Rated operation current Ie at DC-13, 230 V
(A)
0.27
Output electronic
No
Forced opening
No
Type of interface
None
Type of interface for safety communication
None
Housing according to norm
Other
Construction type housing
Cuboid
Coating housing
Other
Alignment of the control element
Other
Type of electric connection
Other
With status indication
No
Suitable for safety functions
No
Explosion safety category for gas
None
Explosion safety category for dust
None
Ambient temperature during operating
(°C)
-29 - 85
Degree of protection (IP)
IP67K
Switching function latching
No
Degree of protection (NEMA)
Other
Stock and logistics
Height
4.318 cm
Width
7.112 cm
Depth
10.668 cm
Packaging
box
Weight
0.476 kg
HS code
8536508090
