Telemecanique Sensors

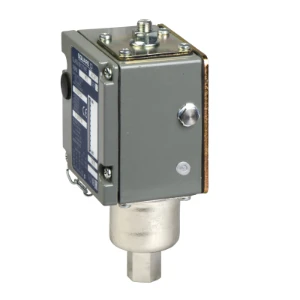

ACW1M119012
Pressure switch
Manufacturer part number: ACW1M119012
Serie: pressure sensors XM
Type: ACW1M119012
EAN-code: 3389110878264
SKU Omnical: 2331242
Stock: 0.
Estimated lead time: 34 days *
PreOrder
FVL
€
509,03
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
ACW1M119012 Telemecanique Sensors Pressure switch
Telemecanique Sensors Pressure switch ACW1 M11 CLASS 9007 DRUKSCHAK.
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Suitable as guard
Yes
Suitable as 2-point controller
Yes
Suitable as limiter
Yes
Max. operation pressure
(hPa)
17000
Engaging pressure
(bar)
0.07 - 7.6
Width
(mm)
88
Initial setting
(hPa)
35000 - 152000
Switch off pressure
(bar)
0.07 - 7.6
End setting
(hPa)
70 - 7600
Pressure-switching differential
(bar)
2
Max. test pressure
(bar)
2
Bursting pressure
(bar)
17
Medium temperature
(°C)
-73 - 125
Rated voltage Ue at AC 50 Hz
(V)
24 - 500
Rated voltage Ue at AC 60 Hz
(V)
0 - 500
Rated voltage Ue at DC
(V)
24 - 600
Initial value measuring range pressure
(Pa)
57000
End value measuring range pressure
(Pa)
960000
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as change-over contact
1
Type of electric connection
Screw connection
Number of normally closed contacts as main contact
0
Number of normally open contacts as main contact
0
With hand operation
No
With manual on/off switch
No
Degree of protection (IP)
IP65/IP67
Electronic version
No
Explosion-proof
No
Height
(mm)
167
Depth
(mm)
68
Thread size
Other
With display
No
Degree of protection (NEMA)
Other
Max. operating pressure
(hPa)
152000
Stock and logistics
Height
8.2 cm
Width
10 cm
Depth
20.5 cm
Packaging
box
Weight
1.567 kg
HS code
9032200090
Country of Origin
CZ
