Telemecanique Sensors
XCSD3710P20
End switch
Manufacturer part number: XCSD3710P20
Serie: Preventa XCS
Type: XCSD3710P20
EAN-code: 3389110240993
SKU Omnical: 1200604
Stock: 0.
Estimated lead time: 34 days *
PreOrder
SSL Connection
WorldWide Shipping

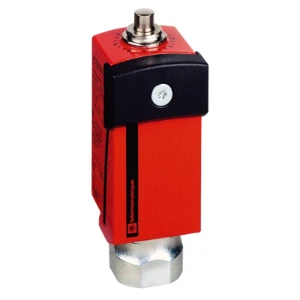

XCSD3710P20 Telemecanique Sensors End switch
Telemecanique Sensors End switch VEILIGH.STANDSCHAK. 1NO2NC ISO20
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Type of control element
Plunger
Material housing
Metal
Number of contacts as change-over contact
0
Number of contacts as normally open contact
1
Number of contacts as normally closed contact
2
Number of safety auxiliary contacts
0
Switching function
Slow-action switch and quick-break switch
Width sensor
(mm)
34
Height of sensor
(mm)
89
Length of sensor
(mm)
35
Rated operation current Ie at AC-15, 230 V
(A)
1.5
Rated operation current Ie at DC-13, 230 V
(A)
0.1
Output electronic
No
Forced opening
No
Type of interface
None
Type of interface for safety communication
None
Housing according to norm
Other
Construction type housing
Cuboid
Coating housing
Other
Alignment of the control element
Other
Type of electric connection
Cable entry metrical
With status indication
No
Suitable for safety functions
Yes
Explosion safety category for gas
None
Explosion safety category for dust
None
Ambient temperature during operating
(°C)
-25 - 70
Degree of protection (IP)
IP67K
Switching function latching
No
Stock and logistics
Height
13.2 cm
Width
3.4 cm
Depth
5 cm
Packaging
box
Weight
0.205 kg
HS code
8536508090
Country of Origin
FR
