Telemecanique Sensors
XCSRC31MM12
Magnetic proximity switch
Manufacturer part number: XCSRC31MM12
Serie: Preventa XCS
Type: XCSRC31MM12
EAN-code: 3389119634878
SKU Omnical: 3072721
Stock: 0.
Estimated lead time: 105 days *
PreOrder
S83
$
318.11
per item
$
222.67
per item
CAD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

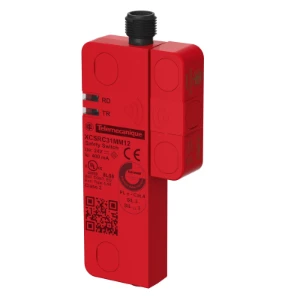

XCSRC31MM12 Telemecanique Sensors Magnetic proximity switch
Telemecanique Sensors Magnetic proximity switch RFID SAFETY EDM MANU START MULTI PAIRING
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Number of semiconductor outputs with signalling function
0
Number of contact energized outputs with signalling function
0
Number of protected semiconductor outputs
0
Number of protected contact energized outputs
3
Type of actuation
Magnet
Type of interface for safety communication
Other
Type of electric connection
Connector M12
Type of switching output
PNP
Width sensor
(mm)
15
Height of sensor
(mm)
119.6
Length of sensor
(mm)
30
Explosion safety category for gas
None
Explosion safety category for dust
None
Construction type housing
Cuboid
Material housing
Other
Coating housing
Uncoated
Protected switch distance OFF
(mm)
20
Protected switch distance ON
(mm)
8
Performance level according to EN ISO 13849-1
Level e
Max. output current at protected output
(mA)
100
Ambient temperature
(°C)
-25 - 70
Mechanical mounting condition for sensor
Other
Min. output current
(mA)
60
Rated supply voltage at DC
(V)
24 - 24
Voltage type
DC
Cross-/short circuit identification possible
Yes
Switching distance
(mm)
35
With monitoring function downstream switching devices
No
Suitable for safety functions
Yes
Degree of protection (IP)
IP67
SIL according to IEC 61508
3
With status indication
No
Stock and logistics
Height
2 cm
Width
11 cm
Depth
15 cm
Packaging
box
Weight
0.103 kg
HS code
8536508090
