Telemecanique Sensors
XMLB035A2S11
Pressure switch
Manufacturer part number: XMLB035A2S11
Serie: pressure sensors XM
Type: XMLB035A2S11
EAN-code: 3389110746754
SKU Omnical: 1067985
Stock: 0.
Estimated lead time: 34 days *
PreOrder
S84
$
258.98
per item
$
181.29
per item
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

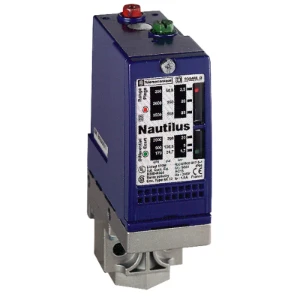

XMLB035A2S11 Telemecanique Sensors Pressure switch
Telemecanique Sensors Pressure switch DRUKSCHAK. 3,5 TOT 35 BAR
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Suitable as guard
Yes
Suitable as 2-point controller
Yes
Suitable as limiter
No
Max. operation pressure
(hPa)
45000
Engaging pressure
(bar)
3.5 - 35
Width
(mm)
35
Initial setting
(hPa)
3500 - 35000
Switch off pressure
(bar)
1.8 - 32.45
End setting
(hPa)
1800 - 32450
Pressure-switching differential
(bar)
17.45
Max. test pressure
(bar)
80
Bursting pressure
(bar)
160
Medium temperature
(°C)
0 - 70
Rated voltage Ue at AC 50 Hz
(V)
120 - 240
Rated voltage Ue at AC 60 Hz
(V)
120 - 240
Rated voltage Ue at DC
(V)
250 - 250
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as change-over contact
1
Type of electric connection
Screw connection
Number of normally closed contacts as main contact
0
Number of normally open contacts as main contact
0
With hand operation
No
With manual on/off switch
No
Degree of protection (IP)
IP66
Electronic version
Yes
Explosion-proof
No
Height
(mm)
113
Depth
(mm)
75
Thread size
Other
With display
No
Degree of protection (NEMA)
Other
Max. operating pressure
(hPa)
35000
Stock and logistics
Height
4 cm
Width
12.2 cm
Depth
8.5 cm
Packaging
box
Weight
0.77 kg
HS code
9032200090
