Telemecanique Sensors
XMPA06B2242

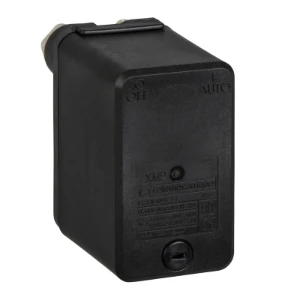

Pressure switch
Manufacturer part number: XMPA06B2242
Serie: pressure sensors XM
Type: XMPA06B2242
EAN-code: 3389110349009
SKU Omnical: 1154834
Stock: 0.
Estimated lead time: 34 days *
PreOrder
S84
$
52.17
per item
$
36.52
per item
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
XMPA06B2242 Telemecanique Sensors Pressure switch
Telemecanique Sensors Pressure switch DRUKSCHAKELAAR
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Suitable as guard
No
Suitable as 2-point controller
Yes
Suitable as limiter
Yes
Max. operation pressure
(hPa)
6000
Engaging pressure
(bar)
1 - 6
Width
(mm)
57
Initial setting
(hPa)
1000 - 6000
Switch off pressure
(bar)
0.2 - 4.8
End setting
(hPa)
200 - 4800
Pressure-switching differential
(bar)
4.2
Bursting pressure
(bar)
30
Medium temperature
(°C)
0 - 70
Type of pressure connection
G 3/8 inch
Rated voltage Ue at AC 50 Hz
(V)
230 - 400
Rated voltage Ue at AC 60 Hz
(V)
230 - 400
Initial value measuring range pressure
(Pa)
100000
End value measuring range pressure
(Pa)
600000
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as change-over contact
0
Type of electric connection
Screw connection
Number of normally closed contacts as main contact
2
Number of normally open contacts as main contact
0
With hand operation
No
With manual on/off switch
No
Degree of protection (IP)
IP54
Electronic version
No
Explosion-proof
No
Height
(mm)
125
Depth
(mm)
98
Thread size
Other
With display
No
Degree of protection (NEMA)
Other
Max. operating pressure
(hPa)
6000
Stock and logistics
Height
6.2 cm
Width
16.8 cm
Depth
11.4 cm
Packaging
box
Weight
0.51 kg
HS code
9032200090
Country of Origin
CZ
