Telemecanique Sensors
XS508B1NAM8
Inductive proximity switch
Manufacturer part number: XS508B1NAM8
Serie: Inductive and capacitive sensors XS
Type: XS508B1NAM8
EAN-code: 3389110143713
SKU Omnical: 1101260
Stock: 0.
Estimated lead time: 34 days *
PreOrder
SSL Connection
WorldWide Shipping

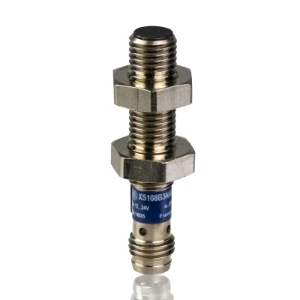

XS508B1NAM8 Telemecanique Sensors Inductive proximity switch
Telemecanique Sensors Inductive proximity switch IND.BEN.SCHAK. OPTI. M8 SN=1,5MM NO NPN
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Length of sensor
(mm)
42
Diameter sensor
(mm)
8
Mechanical mounting condition for sensor
Concise
Switching distance
(mm)
1.5
Suitable for safety functions
No
Type of switch function
Normally open contact
Type of switching output
NPN/NPN
Type of electric connection
Connector M8
Number of semiconductor outputs with signalling function
1
Number of contact energized outputs with signalling function
0
Number of protected semiconductor outputs
1
Number of protected contact energized outputs
0
Type of actuation
Metallic Target
Type of interface
None
Type of interface for safety communication
None
Construction type housing
Cylinder, screw-thread
Coating housing
Nickel-plated
Cascadable
No
Category according to EN 954-1
1
Performance level according to EN ISO 13849-1
None
Max. output current at protected output
(mA)
200
Supply voltage
(V)
12 - 24
Rated control supply voltage at DC
(V)
12 - 24
Voltage type
AC/DC
Switching frequency
(Hz)
5000
With monitoring function downstream switching devices
No
Material housing
Metal
Compression-resistant
No
Explosion safety category for gas
None
Explosion safety category for dust
None
Interference resistance to magnetic fields
Immune against magnetic DC-field
SIL according to IEC 61508
None
Stock and logistics
Height
3.4 cm
Width
5 cm
Depth
7.9 cm
Packaging
box
Weight
0.02 kg
HS code
8536508090
Country of Origin
FR
