Telemecanique Sensors
XUK1ARCNL10

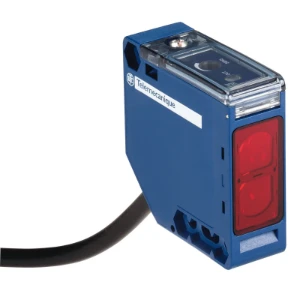

Retroreflective photoelectric sensor
Manufacturer part number: XUK1ARCNL10
Serie: Photoelectric sensors XU
Type: Reflectie lichtscherm
EAN-code: 3389110161069
SKU Omnical: 2347987
Stock:
27 items.
Delivery time: 1-2 business days.
InStock
S83
€
137,90
per item
€
96,53
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
XUK1ARCNL10 Telemecanique Sensors Retroreflective photoelectric sensor
Telemecanique Sensors Retroreflective photoelectric sensor FOTOCEL REFLEX 50X50 KUNSTSTOF REL
Datasheet
Pre failure notice
No
With time function
No
Rated switching distance
(mm)
7000
Max. switching distance
(mm)
10000
Max. output current
(mA)
3000
With reflector
Yes
Analogue output 0 V ... 10 V
No
Analogue output 0 mA ... 20 mA
No
Analogue output 4 mA ... 20 mA
No
Analogue output -10 V ... +10 V
No
With other analogue output
No
Setting procedure
Other
With communication interface analogue
No
With communication interface AS-Interface
No
With communication interface CANOpen
No
With communication interface DeviceNet
No
With communication interface Ethernet
No
With communication interface INTERBUS
No
With communication interface PROFIBUS
No
With communication interface RS-232
No
With communication interface RS-422
No
With communication interface RS-485
No
With communication interface SSD
No
With communication interface SSI
No
Number of semiconductor outputs with signalling function
1
Number of contact energized outputs with signalling function
0
Number of protected semiconductor outputs
0
Number of protected contact energized outputs
0
Type of interface for safety communication
Other
Type of electric connection
Cable radial
Type of switching output
Relay contact
Type of switch function
Change-over contact (NO/NC)
Operation agent-safety class
Safety class 0
Explosion safety category for gas
None
Explosion safety category for dust
None
Construction type housing
Cuboid
Width sensor
(mm)
18
Height of sensor
(mm)
50
Length of sensor
(mm)
50
Sensing mode
Light switching
Material of optical surface
Plastic
Material housing
Plastic
Max. output current at protected output
(mA)
100
Min. reflector distance
(mm)
5000
Ambient temperature
(°C)
-25 - 55
Response time
(ms)
25
Switching frequency
(Hz)
20
Type of safety according to IEC 61496-1
1
Rated control supply voltage at AC 50 Hz
(V)
24 - 240
Rated control supply voltage at AC 60 Hz
(V)
24 - 240
Rated control supply voltage at DC
(V)
24 - 240
Voltage type
AC/DC
With monitoring function downstream switching devices
No
Laser protection class
None
Type of light
Infrared light
With restart blockage
No
Suitable for safety functions
No
Degree of protection (IP)
IP65
Stock and logistics
Height
6 cm
Width
12.5 cm
Depth
11 cm
Packaging
box
Weight
0.578 kg
HS code
8536508090
Country of Origin
ID
