Telemecanique Sensors

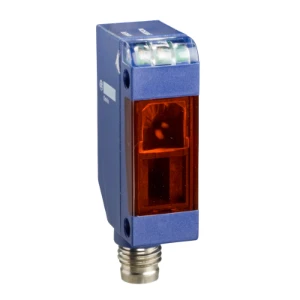

XUM0AKSAM8T
Through beam photoelectric sensor
Manufacturer part number: XUM0AKSAM8T
Serie: Photoelectric sensors XU
Type: XUM0AKSAM8T
EAN-code: 3389110164626
SKU Omnical: 1056610
Stock: 0.
Estimated lead time: 34 days *
PreOrder
FVS
$
119.17
per item
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
XUM0AKSAM8T Telemecanique Sensors Through beam photoelectric sensor
Telemecanique Sensors Through beam photoelectric sensor FOTOCEL UNIV. MINI KUNSTSTOF ZENDER
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Scope of delivery of the one-way system
Transmitter
Max. opening angle
(°)
0
Pre failure notice
No
With time function
No
Rated switching distance
(mm)
10000
Max. switching distance
(mm)
14000
Max. output current
(mA)
0
With reflector
No
Analogue output 0 V ... 10 V
No
Analogue output 0 mA ... 20 mA
No
Analogue output 4 mA ... 20 mA
No
Analogue output -10 V ... +10 V
No
With other analogue output
No
Setting procedure
Teach-In
With communication interface analogue
No
With communication interface AS-Interface
No
With communication interface CANOpen
No
With communication interface DeviceNet
No
With communication interface Ethernet
No
With communication interface INTERBUS
No
With communication interface PROFIBUS
No
With communication interface RS-232
No
With communication interface RS-422
No
With communication interface RS-485
No
With communication interface SSD
No
With communication interface SSI
No
Number of semiconductor outputs with signalling function
0
Number of contact energized outputs with signalling function
0
Number of protected semiconductor outputs
0
Number of protected contact energized outputs
0
Type of interface for safety communication
Other
Type of electric connection
Connector M8
Type of switching output
Other
Type of switch function
Other
Operation agent-safety class
Safety class 0
Explosion safety category for gas
None
Explosion safety category for dust
None
Construction type housing
Special construction
Width sensor
(mm)
12
Diameter sensor
(mm)
0
Height of sensor
(mm)
45
Length of sensor
(mm)
20
Sensing mode
Dark switching
Material of optical surface
Plastic
Material housing
Plastic
Max. output current at protected output
(mA)
100
Min. reflector distance
(mm)
5000
Ambient temperature
(°C)
-25 - 55
Response time
(ms)
2
Transmission range of the safety field
(m)
0
Switching frequency
(Hz)
250
Type of safety according to IEC 61496-1
1
Switching voltage of OSSD at state "high"
(V)
0
Rated control supply voltage at AC 50 Hz
(V)
0 - 0
Rated control supply voltage at AC 60 Hz
(V)
0 - 0
Rated control supply voltage at DC
(V)
12 - 24
Voltage type
DC
With monitoring function downstream switching devices
No
Laser protection class
None
Wavelength of the sensor
(nm)
0
Type of light
Infrared light
Light dot
(mm²)
0
AWG-number
0
Material of cable sheath
Other
With restart blockage
No
Suitable for safety functions
No
Degree of protection (IP)
IP65
Stock and logistics
Height
6.7 cm
Width
9.6 cm
Depth
4.2 cm
Packaging
box
Weight
0.037 kg
HS code
8536508090
Country of Origin
ID
