Telemecanique Sensors
XUVR0608PBNM8
Fork light barrier
Manufacturer part number: XUVR0608PBNM8
Serie: Photoelectric sensors XU
Type: XUVR0608PBNM8
EAN-code: 3389119040693
SKU Omnical: 1183068
Stock: 0.
Estimated lead time: 34 days *
PreOrder
FVS
€
241,23
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

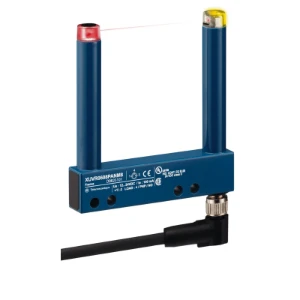

XUVR0608PBNM8 Telemecanique Sensors Fork light barrier
Telemecanique Sensors Fork light barrier FOTOCEL VORK PNP NC 60X80 12 24 VDC
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Min. object size
(mm)
10
Fork depth
(mm)
60
Fork width
(mm)
80
Rated switching distance
(mm)
80
Max. switching distance
(mm)
80
Max. output current
(mA)
100
With time function
No
With reflector
No
Analogue output 0 V ... 10 V
No
Analogue output 0 mA ... 20 mA
No
Analogue output 4 mA ... 20 mA
No
Analogue output -10 V ... +10 V
No
With other analogue output
No
Setting procedure
Other
With communication interface analogue
No
With communication interface AS-Interface
No
With communication interface CANOpen
No
With communication interface DeviceNet
No
With communication interface Ethernet
No
With communication interface INTERBUS
No
With communication interface PROFIBUS
No
With communication interface RS-232
No
With communication interface RS-422
No
With communication interface RS-485
No
With communication interface SSD
No
With communication interface SSI
No
Number of semiconductor outputs with signalling function
0
Number of contact energized outputs with signalling function
0
Number of protected semiconductor outputs
0
Number of protected contact energized outputs
0
Type of interface for safety communication
Other
Type of electric connection
Connector M8
Type of switching output
PNP/PNP
Type of switch function
Breaker contact (NC)
Operation agent-safety class
Safety class 0
Explosion safety category for gas
None
Explosion safety category for dust
None
Construction type housing
Special construction
Width sensor
(mm)
80
Diameter sensor
(mm)
8
Sensing mode
Light switching
Material of optical surface
Glass
Material housing
Metal
Max. output current at protected output
(mA)
100
Response time
(ms)
0.1
Switching frequency
(Hz)
4000
Type of safety according to IEC 61496-1
1
Voltage type
AC/DC
With monitoring function downstream switching devices
No
Pre failure notice
No
Laser protection class
None
Type of light
Laser diode, red light
Material of cable sheath
Other
With restart blockage
No
Degree of protection (IP)
IP65
Suitable for safety functions
No
Ambient temperature
(°C)
-10 - 60
Rated control supply voltage at DC
(V)
12 - 24
Stock and logistics
Height
1.7 cm
Width
13.2 cm
Depth
16.6 cm
Packaging
box
Weight
0.09 kg
HS code
8536508090
Country of Origin
FR
