Telemecanique Sensors
XUX9APANT16

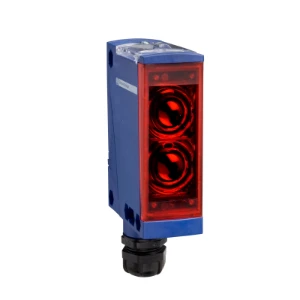

Retroreflective photoelectric sensor
Manufacturer part number: XUX9APANT16
Serie: Photoelectric sensors XU
Type: XUX9APANT16
EAN-code: 3389110171501
SKU Omnical: 1107787
Stock: 0.
Estimated lead time: 10 days *
PreOrder
S83
$
167.32
per item
$
117.13
per item
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
XUX9APANT16 Telemecanique Sensors Retroreflective photoelectric sensor
Telemecanique Sensors Retroreflective photoelectric sensor FOTOCEL POL.REFL. 92X77 KUNSTSTOF NO PNP
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Pre failure notice
No
With time function
No
Rated switching distance
(mm)
11000
Max. switching distance
(mm)
15000
Max. output current
(mA)
100
With reflector
No
Analogue output 0 V ... 10 V
No
Analogue output 0 mA ... 20 mA
No
Analogue output 4 mA ... 20 mA
No
Analogue output -10 V ... +10 V
No
With other analogue output
No
Setting procedure
Manual adjustment
With communication interface analogue
No
With communication interface AS-Interface
No
With communication interface CANOpen
No
With communication interface DeviceNet
No
With communication interface Ethernet
No
With communication interface INTERBUS
No
With communication interface PROFIBUS
No
With communication interface RS-232
No
With communication interface RS-422
No
With communication interface RS-485
No
With communication interface SSD
No
With communication interface SSI
No
Number of semiconductor outputs with signalling function
1
Number of contact energized outputs with signalling function
0
Number of protected semiconductor outputs
0
Number of protected contact energized outputs
0
Type of interface for safety communication
Other
Type of electric connection
Clamp
Type of switching output
PNP/PNP
Type of switch function
Normally open contact (NO)
Operation agent-safety class
Safety class 0
Explosion safety category for gas
None
Explosion safety category for dust
None
Construction type housing
Cuboid
Width sensor
(mm)
31
Height of sensor
(mm)
92
Length of sensor
(mm)
77
Sensing mode
Dark switching
Material of optical surface
Plastic
Material housing
Plastic
Max. output current at protected output
(mA)
100
Min. reflector distance
(mm)
5000
Ambient temperature
(°C)
-25 - 55
Response time
(ms)
2
Switching frequency
(Hz)
250
Type of safety according to IEC 61496-1
1
Rated control supply voltage at DC
(V)
12 - 24
Voltage type
AC/DC
With monitoring function downstream switching devices
No
Laser protection class
None
Type of light
Polarized red light
With restart blockage
No
Suitable for safety functions
No
Degree of protection (IP)
IP65
Stock and logistics
Height
4.2 cm
Width
9.5 cm
Depth
13 cm
Packaging
box
Weight
0.188 kg
HS code
8536508090
Country of Origin
FR
