Telemecanique Sensors
XUYBCO989SP
Retroreflective photoelectric sensor
Manufacturer part number: XUYBCO989SP
Serie: Photoelectric sensors XU
Type: XUYBCO989SP
EAN-code: 3389119007047
SKU Omnical: 2348231
Stock: 0.
Estimated lead time: 34 days *
PreOrder
S83
€
141,05
per item
€
98,74
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

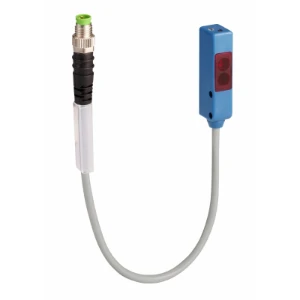

XUYBCO989SP Telemecanique Sensors Retroreflective photoelectric sensor
Telemecanique Sensors Retroreflective photoelectric sensor BCO989SP FOTOCEL REF.POL. PNP 10/30VDC
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Pre failure notice
No
With time function
No
Rated switching distance
(mm)
1000
Max. switching distance
(mm)
1000
Max. output current
(mA)
25
With reflector
Yes
Analogue output 0 V ... 10 V
No
Analogue output 0 mA ... 20 mA
No
Analogue output 4 mA ... 20 mA
No
Analogue output -10 V ... +10 V
No
With other analogue output
No
Setting procedure
Teach-In
With communication interface analogue
No
With communication interface AS-Interface
No
With communication interface CANOpen
No
With communication interface DeviceNet
No
With communication interface Ethernet
No
With communication interface INTERBUS
No
With communication interface PROFIBUS
No
With communication interface RS-232
No
With communication interface RS-422
No
With communication interface RS-485
No
With communication interface SSD
No
With communication interface SSI
No
Number of semiconductor outputs with signalling function
1
Number of contact energized outputs with signalling function
0
Number of protected semiconductor outputs
1
Number of protected contact energized outputs
0
Type of interface for safety communication
Other
Type of electric connection
Connector M8
Type of switching output
PNP/PNP
Type of switch function
Programmable/configurable
Operation agent-safety class
Safety class 0
Explosion safety category for gas
None
Explosion safety category for dust
None
Construction type housing
Special construction
Width sensor
(mm)
30
Height of sensor
(mm)
60
Length of sensor
(mm)
13
Sensing mode
Light-/dark switching
Material of optical surface
Plastic
Material housing
Plastic
Max. output current at protected output
(mA)
25
Min. reflector distance
(mm)
5000
Ambient temperature
(°C)
0 - 50
Response time
(ms)
1
Switching frequency
(Hz)
500
Type of safety according to IEC 61496-1
1
Rated control supply voltage at DC
(V)
12 - 24
Voltage type
AC/DC
With monitoring function downstream switching devices
No
Laser protection class
None
Type of light
Polarized red light
With restart blockage
No
Suitable for safety functions
No
Degree of protection (IP)
IP67K
Stock and logistics
Height
3.5 cm
Width
7 cm
Depth
13 cm
Packaging
box
Weight
0.061 kg
HS code
8536501990
