Telemecanique Sensors
XX630S1NCM12
Ultrasonic proximity switch
Manufacturer part number: XX630S1NCM12
Serie: Ultrasonic sensors XX
Type: Ultrasone drukschakelaar
EAN-code: 3389118031326
SKU Omnical: 2348838
Stock: 0.
Estimated lead time: 61 days *
PreOrder
S83
€
660,75
per item
€
462,52
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

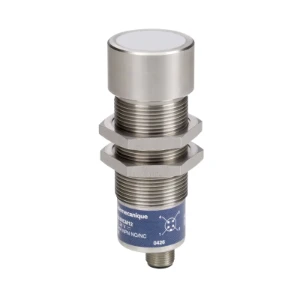

XX630S1NCM12 Telemecanique Sensors Ultrasonic proximity switch
Telemecanique Sensors Ultrasonic proximity switch ULTRASOON RVS M30 SN=1M NO+NC NPN
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Type of analogy output
Other
Type of electric connection
Connector M12
Type of switching output
NPN/NPN
Type of switch function
Other
Blind zone
(mm)
51
Width sensor
(mm)
35
Height of sensor
(mm)
35
Length of sensor
(mm)
85
Diameter sensor
(mm)
30
Adjustable distance
(mm)
51 - 991
Setting procedure
Teach-In
Measuring range length
(mm)
51 - 991
Explosion safety category for gas
None
Explosion safety category for dust
None
Construction type housing
Cylinder, screw-thread
Standard for interfaces
Other
No-load current
(mA)
50
Max. output current
(mA)
100
Ambient temperature
(°C)
0 - 60
Supply voltage
(V)
12 - 24
Relative repeat accuracy
(%)
0.9
Switching frequency
(Hz)
10
Voltage type
AC/DC
Synchronization possible
No
Material active area of sensor
Plastic
Material housing
Stainless steel
Material of cable sheath
Other
Degree of protection (IP)
IP67
Stock and logistics
Height
14.2 cm
Width
7.1 cm
Depth
5.5 cm
Packaging
box
Weight
0.15 kg
HS code
8536501990
