Telemecanique Sensors
XX9D1A1C2M12
Ultrasonic proximity switch
Manufacturer part number: XX9D1A1C2M12
Serie: Ultrasonic sensors XX
Type: Ultrasone drukschakelaar
EAN-code: 3389119029971
SKU Omnical: 2348855
Stock: 0.
Estimated lead time: 61 days *
PreOrder
S83
€
391,70
per item
€
274,19
per item
EUR | Excluding VAT
Quantity
items
Add to cart
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

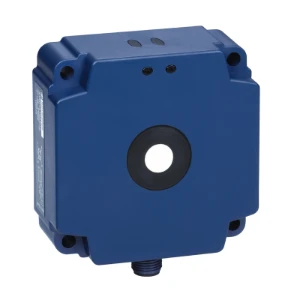

XX9D1A1C2M12 Telemecanique Sensors Ultrasonic proximity switch
Telemecanique Sensors Ultrasonic proximity switch ULTRA,SENSOR 80x80 1M 4 20MA M12
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Type of analogy output
4 mA ... 20 mA
Type of electric connection
Connector M12
Type of switching output
Other
Type of switch function
Other
Blind zone
(mm)
100
Width sensor
(mm)
0
Height of sensor
(mm)
80
Length of sensor
(mm)
80
Diameter sensor
(mm)
0
Adjustable distance
(mm)
100 - 1000
Setting procedure
Teach-In
Measuring range length
(mm)
100 - 1000
Explosion safety category for gas
None
Explosion safety category for dust
Other
Construction type housing
Cuboid
Standard for interfaces
Analogue
No-load current
(mA)
60
Relative linearity deflection
(%)
0
Max. output current
(mA)
0
Ambient temperature
(°C)
0 - 70
Supply voltage
(V)
15 - 24
Relative repeat accuracy
(%)
0.9
Switching frequency
(Hz)
0
Voltage type
DC
Synchronization possible
No
Material active area of sensor
Plastic
Material housing
Plastic
Material of cable sheath
Other
AWG-number
0
Degree of protection (IP)
IP67
Stock and logistics
Height
0.4 cm
Width
9.5 cm
Depth
13.2 cm
Packaging
box
Weight
0.318 kg
HS code
9031808000
