Telemecanique Sensors
XXR12A8KAM8
Ultrasonic proximity switch
Manufacturer part number: XXR12A8KAM8
Serie: Ultrasonic sensors XX
Type: XXR12A8KAM8
EAN-code: 3389119052238
SKU Omnical: 2348865
Stock: 0.
Estimated lead time: 34 days *
PreOrder
FVV
$
605.44
per item
CAD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

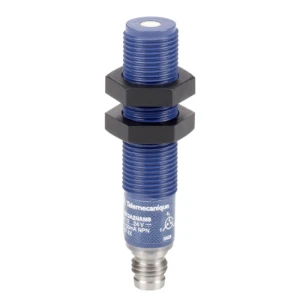

XXR12A8KAM8 Telemecanique Sensors Ultrasonic proximity switch
Telemecanique Sensors Ultrasonic proximity switch ULTR,SENSOR M12 RX SN 200MM N0 PNPNPN M8
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Type of analogy output
Other
Type of electric connection
Connector M8
Type of switching output
PNP/NPN
Type of switch function
Normally open contact (NO)
Blind zone
(mm)
200
Width sensor
(mm)
12
Height of sensor
(mm)
12
Length of sensor
(mm)
50
Diameter sensor
(mm)
12
Adjustable distance
(mm)
0 - 0
Setting procedure
Other
Measuring range length
(mm)
0 - 200
Explosion safety category for gas
None
Explosion safety category for dust
Other
Construction type housing
Cylinder, screw-thread
Standard for interfaces
Other
No-load current
(mA)
50
Relative linearity deflection
(%)
0
Max. output current
(mA)
100
Ambient temperature
(°C)
-20 - 65
Supply voltage
(V)
12 - 24
Relative repeat accuracy
(%)
0
Switching frequency
(Hz)
125
Voltage type
DC
Synchronization possible
No
Material active area of sensor
Plastic
Material housing
Plastic
Material of cable sheath
Other
AWG-number
0
Degree of protection (IP)
IP67
Stock and logistics
Height
4 cm
Width
8.5 cm
Depth
8.8 cm
Packaging
box
Weight
0.03 kg
HS code
8536501990
