Telemecanique Sensors
ZCMD29L2
End switch
Manufacturer part number: ZCMD29L2
Serie: Limit switches XC Standard
Type: ZCMD29L2
EAN-code: 3389110299328
SKU Omnical: 1202277
Stock: 0.
Estimated lead time: 34 days *
PreOrder
SSL Connection
WorldWide Shipping

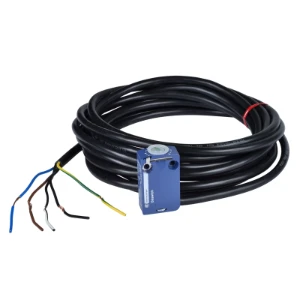

ZCMD29L2 Telemecanique Sensors End switch
Telemecanique Sensors End switch STANDSCHAK. BODY 2NC SNAP ACTION
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Type of control element
None
Material housing
Metal
Number of contacts as change-over contact
0
Number of contacts as normally open contact
0
Number of contacts as normally closed contact
2
Number of safety auxiliary contacts
0
Switching function
Quick-break switch
Width sensor
(mm)
30
Diameter sensor
(mm)
0
Height of sensor
(mm)
52
Length of sensor
(mm)
16
Rated operation current Ie at AC-15, 24 V
(A)
0
Rated operation current Ie at AC-15, 125 V
(A)
0
Rated operation current Ie at AC-15, 230 V
(A)
1.5
Rated operation current Ie at DC-13, 24 V
(A)
0
Rated operation current Ie at DC-13, 125 V
(A)
0
Rated operation current Ie at DC-13, 230 V
(A)
0.1
Output electronic
No
Forced opening
Yes
Type of interface
None
Type of interface for safety communication
None
Housing according to norm
Other
Construction type housing
Cuboid
Coating housing
Other
Alignment of the control element
Other
Type of electric connection
With cable preassembled
With status indication
No
Suitable for safety functions
No
Explosion safety category for gas
None
Explosion safety category for dust
None
Ambient temperature during operating
(°C)
-25 - 70
Degree of protection (IP)
IP66
Switching function latching
No
Stock and logistics
Height
2.5 cm
Width
13.5 cm
Depth
13 cm
Packaging
box
Weight
0.236 kg
HS code
8536508090
Country of Origin
ID
